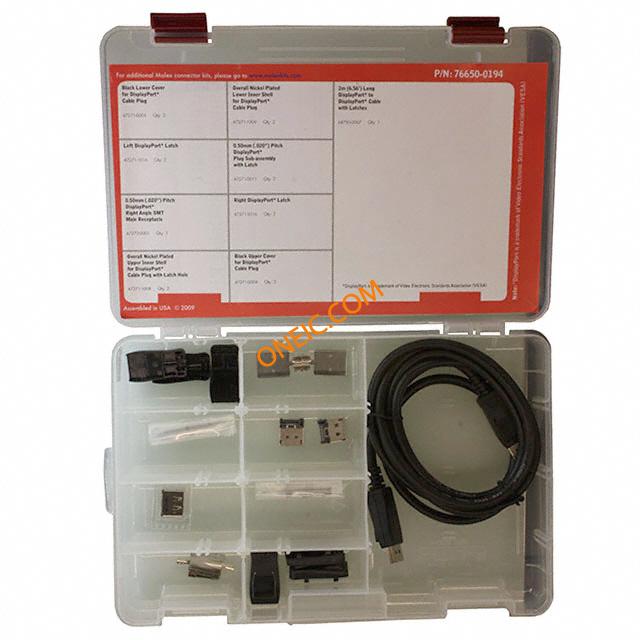

76650-0194
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 20POS 0.5A SURFACE MOUNT CABLES,PLUGS,RIGHT ANGLE RECEPTACLE 0.5MM PITCH 40V KIT DISPLAYPORT HDMI, Displayport & DVI Connectors DISPLAYP0RT C0NN KIT Kit Description:I/O Plug, Receptacle and CableKit Category:I/O Wire to BoardSolution:I/OPackaging:Tackle Box: 11" by 7.25"Num. Pieces:18 DISPLAYPORT CONNECTOR & CABLE KIT I/O PLUG, RECEPT & CABLE |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | DisplayPort | 标准包装规格 | 1 |
| 零件号别名 | 0766500194 | 产品类别 | HDMI, Displayport & DVI Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 40 V | 额定电压 | 40 V |
| 最大额定电流 | 0.5 A | 触点额定值 @ 电压 | 0.5 A |
机械参数
| 间距 | 0.50 mm | 包装方式 | Plastic Box with Bin Guide |
| 连接器类型 | Plug and Receptacle | 端接样式 | SMD |
| 触点数 | 20 | ||
产品信息
| 系列 | 76650 | 值 | 18 pcs - Assorted Housing, Latch, Plug |
| 套件类型 | I/O Connectors | 制造商全称 | 76650 |
| 产品子类型 | Displayport | 配置 | Wire-to-Board |
| 电路数 | 20 | ||
