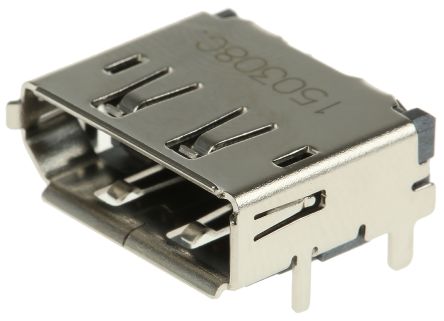

47272-0001
| 制造商 | Molex, LLC |
| 描述 | HDMI, Displayport & DVI Connectors .5MM RA SMT RCPT Conn Display Port M 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Embossed T/R CONNECTOR, DISPLAY PORT, RCPT, 19POS .50mm PITCH DISPLAYPORT RECEPTACLE; RIGHT ANGLE; 20 PIN; SURFACE MOUNT; Molex DisplayPort 系列 0.5mm节距 20路 (2排) 直角 印刷电路板插座, 焊接端接, 0.5A , 表面安装 |
| 分类 |
商业参数
| 零件号别名 | 0472720001 | 产品类别 | HDMI, Displayport & DVI Connectors |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 40 V | 触点额定值 @ 电压 | 0.5 A |
机械参数
| 颜色 | Black | 重量 | 0 |
| 包装方式 | Reel | 方向 | Right Angle |
| 连接器类型 | DisplayPort | 接触镀层 | Gold |
| 排数 | :2 | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 端接样式 | SMD |
| 触点数 | 20 | 接触件端接 | :Surface Mount Right Angle |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 连接器性别 | Female | 系列 | 47272 |
| 适配器类型 | Receptacle | 产品子类型 | Displayport |
文档与媒体
相关型号
76650-0143
molex
Kit With PCB Through Hole, SMT Mounting Style KIT MULTI HDMI DVI USB Circular Metric Connectors VIDEO AUDIO COMM KIT Kit Description:Includes HDMI, HDMI to DVI-D, MicroCross DVI-D and DVI-I, Displayport, IEEE1394-1395, USB Type A and B, USB OTG (On-the-Go) mini-B, Micro USB-B Product Families. Pitches range: 0.05mm (.002)" - 2.0mm (.079)"Kit Category:I/OSolution:I/OPackaging:Tackle Box: 11" by 7.25"Num. Pieces:25 DELUXE AUDIO VIDEO DATA APPLICATION KIT

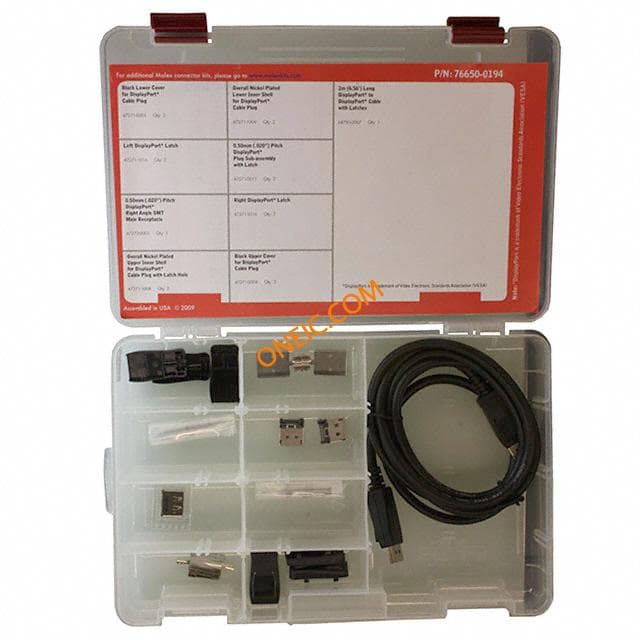

76650-0194
