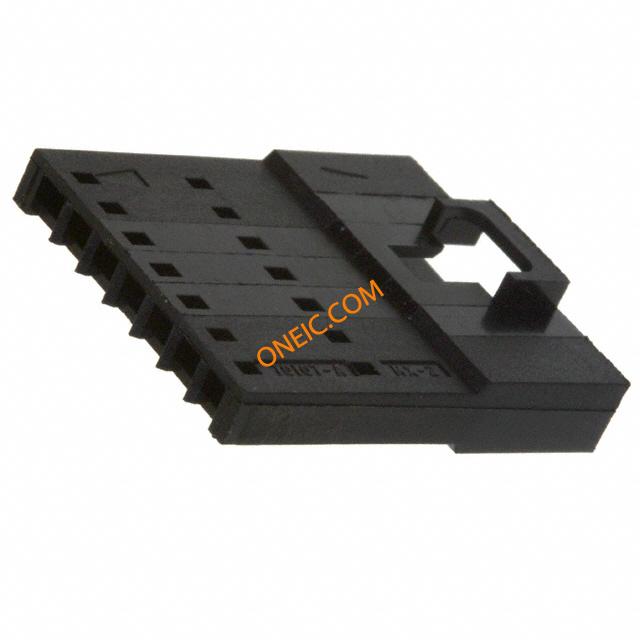

70107-0006
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 7 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 7POS .100 2.54mm,housing,Cgrid,SL,A,w/o ears,7w Headers & Wire Housings HSG 7P W/O EARS SINGLE ROW Conn Housing M 7 POS 2.54mm Crimp ST Cable Mount Bag Conn.; Rect.; Housing; Crp; 2.54mm Pitch; 7 Cir.; SL; W2W; Fem.; Sngl; w/o Ears Molex SL 系列 1 行 2.54mm 节距 7 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | SL | 零件号别名 | 0701070006 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 深度 | 24.26mm |
| 间距 | 0.100" (2.54mm) | 宽度 | 6mm |
| 长度 | 19.81mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 1 | 壳体材料 | PET |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 7 | 接触件端接 | Crimp |
| 位数 | 7 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 70107 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 基础产品编号 | 70107 |
| 适用产品/相关产品 | SL Wire-to-Wire Connector | ||
