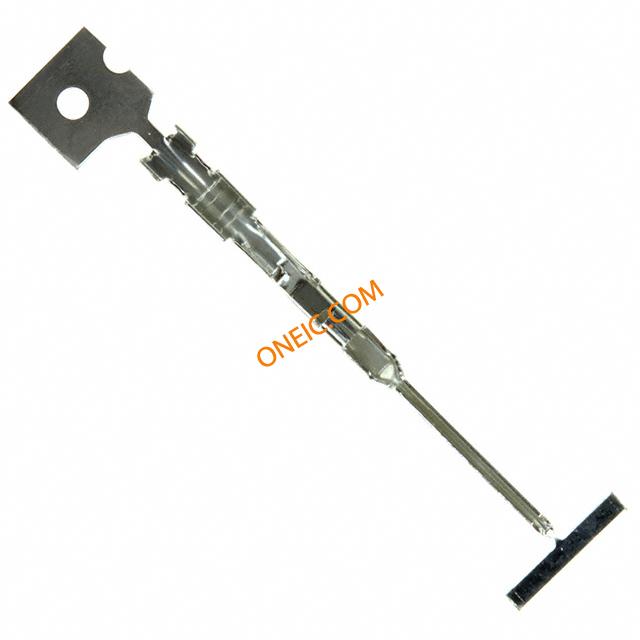

0016020107
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 22-24AWG TIN |
| 分类 |
商业参数
| 交货时间 | 22 Days | 其他名称 | WM2517CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.03 mm | 间距 | Not Required mm |
| 包装方式 | Reel | 导线线规 | 22-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin-Lead Over Nickel | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 21.39 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 150µin (3.81µm) |
产品信息
| 类型 | Contact | 连接器性别 | PIN |
| 行业别名 | 16-02-0107, 16020107 | 适用产品/相关产品 | 0016020114 |
文档与媒体
相关型号
0701070048
molex
Conn Housing M 14 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 14POS
0638111000
molex
Connector Accessories Hand Crimp Tool Hand Crimper Handtool Type TOOL CRIMP 14-24AWG UNIVERSAL Tool: for crimping; 14÷24AWG
0701070046
molex
Conn Housing M 12 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 12POS
0701070058
molex
Conn Housing M 24 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 24POS
0701070004
molex
Conn Housing F 5 POS 2.54mm Crimp ST Bag CONN HOUSING MALE 5POS .100
0638118700
molex
CONN ACC HAND CRMP TOOL Hand Crimp Tool With Type Handtool TOOL 22-24&32-36 AWG SL CRIMP Tool: for crimping; terminals; 22÷24AWG
0011030036
molex
Extraction Tool TOOL HAND EXTRACTION Tool: for demounting of terminals; terminals
0701070107
molex
Conn Housing F 3 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT D 3POS

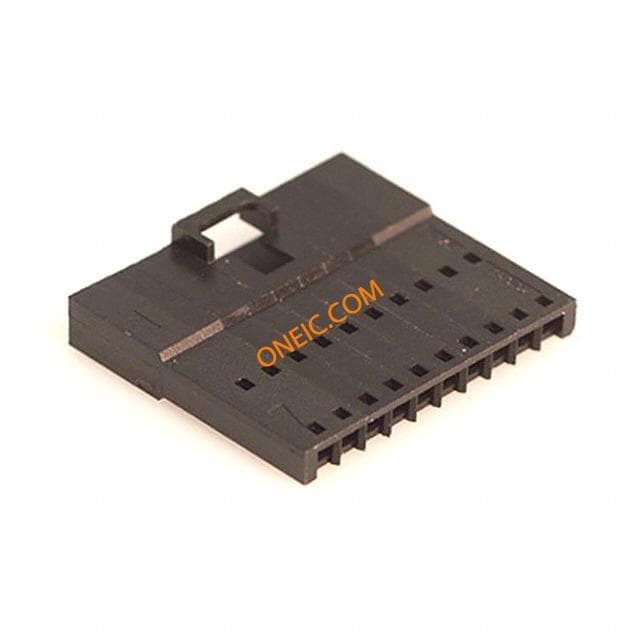

0701070009
molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING MALE 10POS .100
0639003500
molex
Connector Accessories Crimp Applicator Tool FineAdjust Applicator FINE ADJUST APPLICATOR
0639103500
molex
Connector Accessories Crimp Terminator Die Set T2 Terminator Tooling Die T2 TERMINATOR ASSEMBLY
0701070055
Molex
Conn Housing M 21 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT B 21POS
0701070017
Molex
Conn Housing F 18 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT A 18POS
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0701070077
Molex
Conn Housing F 8 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 8POS
0639014600
Molex
FINEADJUST APPLICATOR FOR SL CRIMP TERMINAL, MALE, 22 AWG FINE ADJUST APPLICATOR
0701070050
Molex
Conn Housing M 16 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 16POS
0011020022
Molex
Light Weight Hand Insertion Tool TOOL HAND INSERTION Tool: for crimping; terminals; Application: MX-71851 sale
0701070059
Molex
Conn Housing M 25 POS 2.54mm Crimp ST Panel Mount Bag SL WTW CONN SR OPT B 25POS

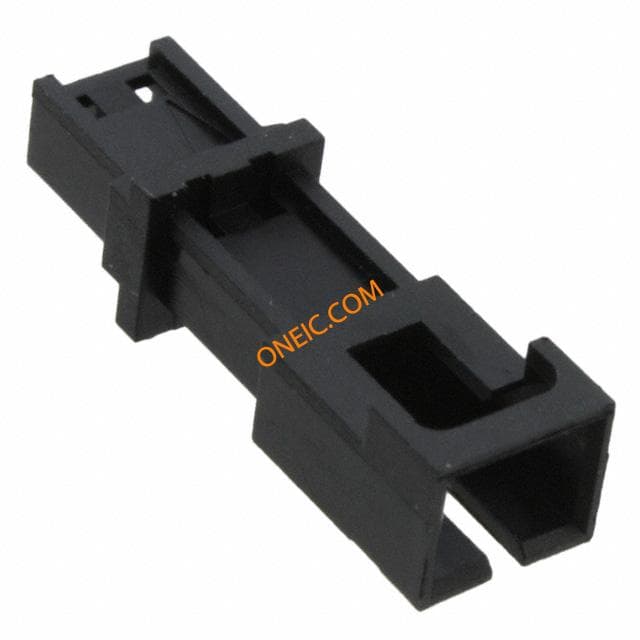

70107-0071
