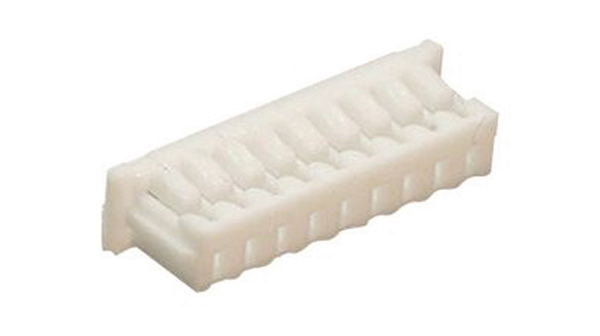

点击放大查看
51021-1200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 12 POS 1.25mm Crimp ST Bag 12 way receptacle housing,1.25mm pitch Headers & Wire Housings RECEPTACLE 12 POS HOUSING, CRIMP, RECEPTACLE, 1.25MM, 12P Crimp housing 1.25 mm Poles 12 PicoBlade, 51021-1200, Molex Molex PICOBLADE 系列 1.25mm 节距 12 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | PicoBlade | 零件号别名 | 0510211200 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Non Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | :125V | 工作电压 | :125V |
| 最大额定电流 | :1A | 绝缘电阻 | :100Mohm |
机械参数
| 深度 | 3.95mm | 间距 | 1.25 mm |
| 宽度 | 3.2mm | 长度 | 16.75mm |
| 重量 | 0.014 | 安装类型 | Straight |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :GF Nylon UL94V-0 | 壳体材料 | PBT |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 位数 | :12 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 51021 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | PicoBlade Wire-to-Board Connector, PicoBlade Wire-to-Wire Connector |
环境参数
| 工作温度 | :85°C | ||
