点击放大查看

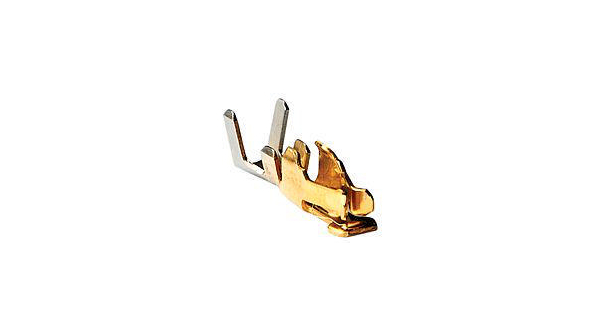

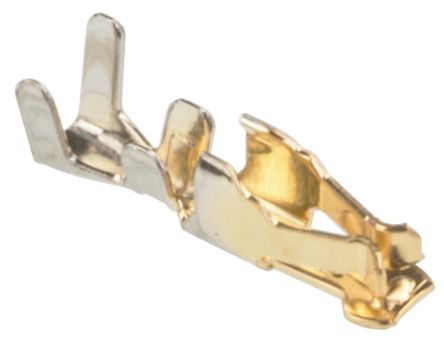

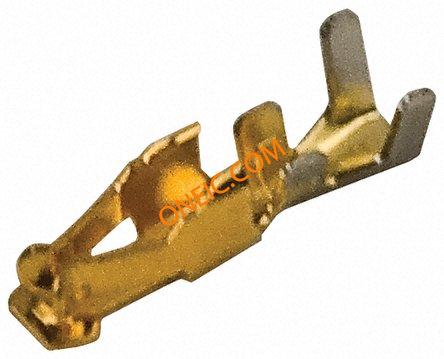

50394-8100
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings TERMINAL BULK Crimp terminal,MilliGrid,sAu,female Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK1000 CRIMP SOCKET, 24AWG, PK100 Milli-Grid, Crimp Terminal Crimp terminal Female 30...26 AWG, 50394-8100, Molex Molex MILLI-GRID 系列 母 压接接线端子, 压接, 镀金触点 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0503948100 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 10000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | ||
电气参数
| 额定电压 | 125 V | 接触电阻 | :25mohm |
| 最大额定电流 | :1A | ||
机械参数
| 长度 | 6.25 mm | 重量 | 1 |
| 材料（通用） | :Phosphor Bronze | 包装方式 | Bag |
| 绝缘类型 | Not Insulated | 导线线规 | 30-24 |
| 端接方式 | Crimp | 触点尺寸 | :24 |
| 接触镀层 | Gold | 触头材料 | Phosphor Bronze |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 接触件端接 | :Crimp | 绝缘直径 | :1.4mm |
| 线规或范围 - AWG | :30AWG | 线规或范围 - mm² | :0.22mm² |
| 外径-未扩张 | :0.56mm | ||
产品信息
| 连接器性别 | Female | 系列 | 50394 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :51110 Crimp Housing |
相关型号
50394-8100
Molex
Headers & Wire Housings TERMINAL BULK Crimp terminal,MilliGrid,sAu,female Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK1000 CRIMP SOCKET, 24AWG, PK100 Milli-Grid, Crimp Terminal Crimp terminal Female 30...26 AWG, 50394-8100, Molex Molex MILLI-GRID 系列 母 压接接线端子, 压接, 镀金触点
76650-0234
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,6POS 0.5-2A,2A,3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM,2.54MM,2.5MM PITCH 125V,250V 22-28, 22-30, 24-30 WIRE SIZE KIT CONN MULTI WIRE-BOARD 556PC COMPONENT KITS, WIRE TO BOARD KIT 10,2,3,4,6POS 0.5-2A,2A,3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER, VERTICAL HEADER 2MM,2.54MM,2.5MM PITCH 125V,250V ...

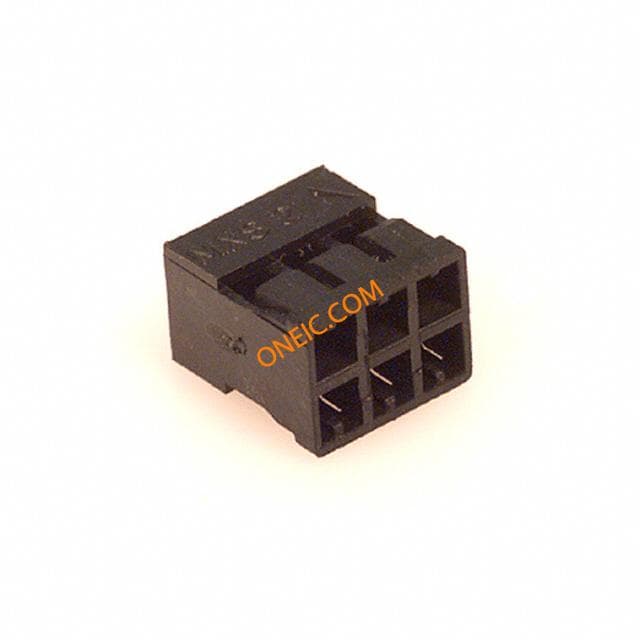

51110-0650
