点击放大查看

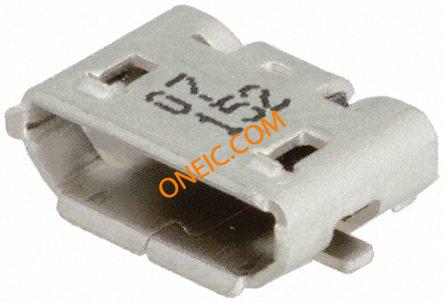

47346-0001
| 制造商 | Molex, LLC |
| 描述 | USB Connectors MICRO USB B RECPT BTTM MOUNT ASSY Micro USB B Receptacle Bottom Mount Assy MICRO USB TYPE B, RECEPTACLE, BOTTOM MICRO USB TYPE AB CONN, RCPT, 5POS, SMD CONNECTOR, MICRO USB B, RCPT, 5POS, R/A SMD, FULL REEL Conn; Data; USB; Micro; B; w/Flange; SMT; Bottom Mnt; LF Molex MICRO-USB系列 直角 SMT安装 母 micro USB 连接器 B型 v2.0, 30 V 交流, 1A 47352 |
| 分类 |
商业参数
| 产品 | Micro USB Type B Connectors | 零件号别名 | 0473460001 |
| 产品类别 | USB Connectors | 工厂包装数量 | 14000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 100 V | 供电电压 | USB |
| 接触电阻 | :40mohm | 击穿电压 | :100V |
| 最大额定电流 | 1.8 A | ||
机械参数
| 重量 | 0.000247 | 包装方式 | Reel |
| 端接方式 | Solder | 安装类型 | Right |
| 连接器类型 | Micro USB Type B Receptacle | 接触镀层 | Gold |
| 安装样式 | SMD/SMT | 触头材料 | Copper Alloy |
| 触点数 | 5 | 接触件端接 | :Solder |
| 第一连接器安装类型 | :PCB | ||
产品信息
| USB | B | 连接器性别 | Female |
| 系列 | 47346 | 端口数 | 1 |
环境参数
| 工作温度 | - 20 C to + 85 C | ||
相关型号

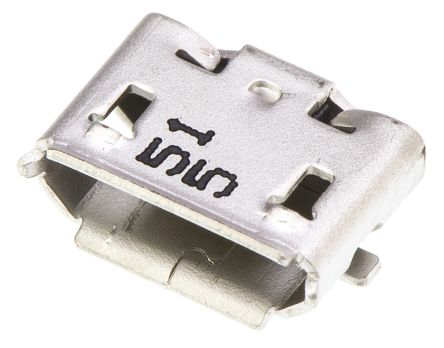

47346-0001
Molex
USB Connectors MICRO USB B RECPT BTTM MOUNT ASSY Micro USB B Receptacle Bottom Mount Assy MICRO USB TYPE B, RECEPTACLE, BOTTOM MICRO USB TYPE AB CONN, RCPT, 5POS, SMD CONNECTOR, MICRO USB B, RCPT, 5POS, R/A SMD, FULL REEL Conn; Data; USB; Micro; B; w/Flange; SMT; Bottom Mnt; LF Molex MICRO-USB系列 直角 SMT安装 母 micro USB 连接器 B型 v2.0, 30 V 交流, 1A 47352
68784-0003
Molex
Cable Assemblies USB A TO MICRO B CBL 2M USB Cables / Firewire Cables USB A TO MICRO B CBL 2M USB Shielded I/O Cable Assembly, USB A-to-Micro-USB B, 2.0m Length, Black, Lead-Free CABLE, USB A PLUG TO USB MICRO B PLG, 2M MICRO USB CABLE ASSEMBLY Molex 2m 黑色 电缆组件, USB A 至 微型 USB B
68784-0002
molex
Cable Assembly USB 1.5m 28AWG USB Type A to Micro-USB Type B M-M Bag Cable Assemblies USB A TO MICRO B CBL 1.5M CABLE MICRO USB B TO STD A 1.5M USB Cables / Firewire Cables USB A TO MICRO B CBL 1.5M Molex 1.5m 黑色 电缆组件, USB A 至 微型 USB B
76650-0143
molex
Kit With PCB Through Hole, SMT Mounting Style KIT MULTI HDMI DVI USB Circular Metric Connectors VIDEO AUDIO COMM KIT Kit Description:Includes HDMI, HDMI to DVI-D, MicroCross DVI-D and DVI-I, Displayport, IEEE1394-1395, USB Type A and B, USB OTG (On-the-Go) mini-B, Micro USB-B Product Families. Pitches range: 0.05mm (.002)" - 2.0mm (.079)"Kit Category:I/OSolution:I/OPackaging:Tackle Box: 11" by 7.25"Num. Pieces:25 DELUXE AUDIO VIDEO DATA APPLICATION KIT
