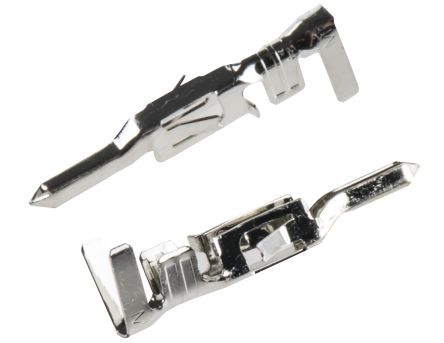

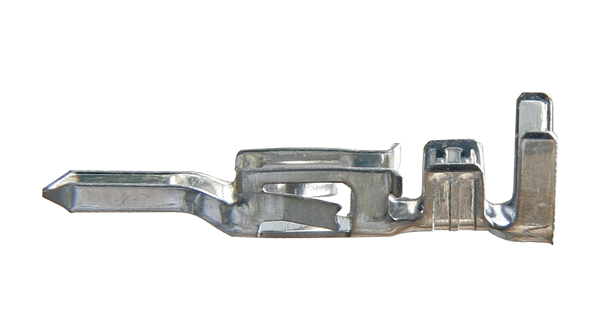

46012-3142
| 制造商 | Molex, LLC |
| 描述 | male terminal, 16AWG, tin, loose Pin & Socket Connectors MF PLUS HCS CRIMP TE RM MALE 16GA TIN Contact PIN Crimp ST Cable Mount Bag CRIMP PIN, 16AWG, MINI-FIT HCS Crimp pin 13 A Male 16 AWG, 46012-3142, Molex Molex Mini-Fit Plus 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit HCS | 零件号别名 | 0460123142 |
| 产品类别 | Pin & Socket Connectors | 工厂包装数量 | 8000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 接触电阻 | :10mohm |
| 击穿电压 | :1500V | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.000145 | 导线线规 | :16AWG |
| 端接方式 | Crimp | 触点尺寸 | :16 |
| 接触镀层 | Tin | 触头材料 | Copper |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | :Crimp | 线规或范围 - AWG | 16 |
产品信息
| 连接器性别 | Male | 系列 | 46012 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :5559 Mini-Fit Jr. Plugs, 42475 Mini-Fit BMI Panel Mount Plugs, 30068 Mini-Fit TPA Plugs |
环境参数
| 插拔次数 | :75 | 工作温度 | :105°C |
