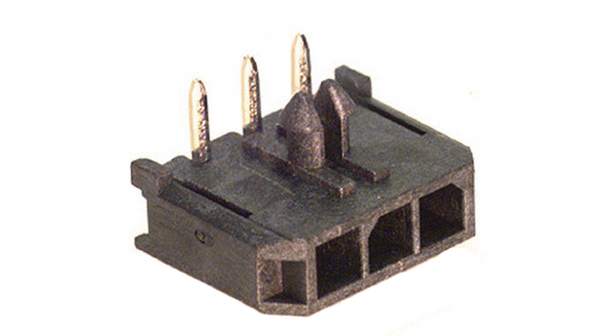

43650-0300
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Tray Molex 43650 Series 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings R/A HEADER 3 POS TIN SINGLE ROW HEADER, RIGHT ANGLE, SINGLE ROW, 3 WAY Male connector single row 90° Pitch3 mm Poles 1 x 3 Micro-Fit, 43650-0300, Molex Molex MICRO-FIT 3.0 系列 3mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0436500300 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 2975 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 250 V | 工作电压 | :250V |
| 最大额定电流 | 5A | ||
机械参数
| 间距 | 3 mm | 重量 | 0.006 |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Tin | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 3 |
| 接触件端接 | :Solder | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | 43650 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
相关型号
43650-0300
molex
Conn Power HDR 3 POS 3mm Solder RA Thru-Hole 3 Terminal 1 Port Tray Molex 43650 Series 3mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 5A Headers & Wire Housings R/A HEADER 3 POS TIN SINGLE ROW HEADER, RIGHT ANGLE, SINGLE ROW, 3 WAY Male connector single row 90° Pitch3 mm Poles 1 x 3 Micro-Fit, 43650-0300, Molex Molex MICRO-FIT 3.0 系列 3mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 5A , 通孔
¥2.2440
详情
43645-0300
Molex
3 way single row receptacle,3mm pitch Headers & Wire Housings RECEPTACLE 3 POS Conn Housing RCP 3 POS 3mm Crimp ST Bag RECEPTACLE, IN-LINE, 3WAY Micro-Fit 3.0 Receptacle; Single Row; 3Circuit Female contact housing single row Pitch3 mm Poles 1 x 3 Micro-Fit, 43645-0300, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 3 路 直 母 压接连接器外壳
¥0.7684
详情
