点击放大查看

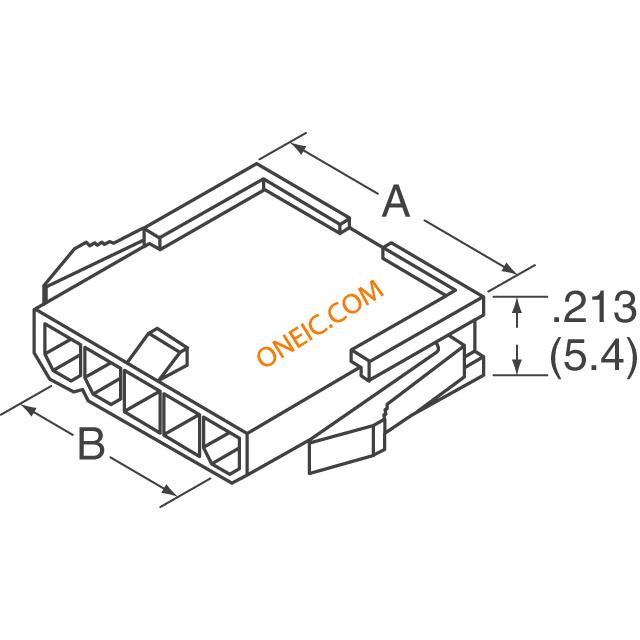

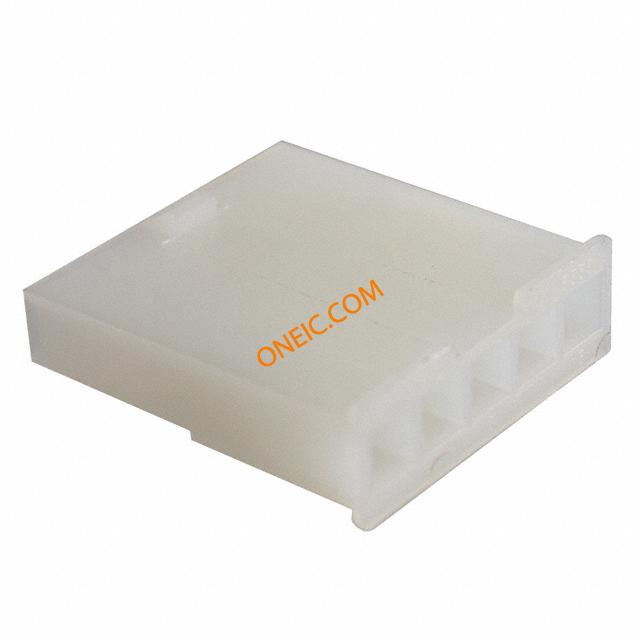

39-01-4056
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 5 POS 4.2mm Crimp ST Cable Mount Bag CONN PLUG 5POS VERT SINGLE 5w s/row free hanging plug,Mini-Fit Jr Headers & Wire Housings 5 CKT PLUG HOUSING 4.20mm Pitch Mini-Fit Jr.™ Plug Housing, Single Row, without Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 5 Circuits Conn Housing M 5 POS 4.2mm Crimp ST Cable Mount Bag .165 mini fit jr plug housing, single row. panel mount 5 circuit .165minifitjrplughousing,singlerow.panelmount5circuit Molex MINI-FIT JR. 系列 4.2mm 节距 5 路 直 公 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039014056 5559-05P3 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 11 A, 8 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Natural | 深度 | 23.9mm |
| 间距 | 4.2 mm | 宽度 | 7.4mm |
| 长度 | 22.2mm | 包装方式 | Bulk |
| 导线线规 | 20-16 | 方向 | 直 |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 5559 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 5559 | 输出配置 | Free Hanging (In-Line) |
| 适用产品/相关产品 | Mini-Fit Jr. Plug | ||
