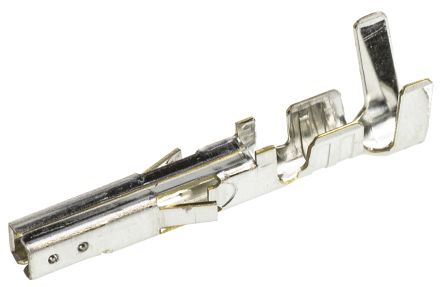

39-00-0038
| 制造商 | Molex, LLC |
| 描述 | Crimp term,female,18-24AWG,tin,reel Headers & Wire Housings MN-FT TERM 18-24G F Reel of 4000 Contact SKT Crimp ST Cable Mount Reel CONTACT, SOCKET, 24-18AWG, CRIMP, FULL REEL CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT, SOCKET, 24-18 AWG, CRIMP .165 Pitch Mini-Fit Crimp Terminal, Female, 18-24awg, reel Molex MINI-FIT 系列 母 压接接线端子, 压接, 镀锡镀铜触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 零件号别名 | 0039000038 5556T |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V | 接触电阻 | 10mΩ |
| 最大额定电流 | :9A | ||
机械参数
| 重量 | 0 | 包装方式 | Reel |
| 导线线规 | 24-18 | 端接方式 | Crimp |
| 连接器类型 | Contact | 接触镀层 | Tin over Copper |
| 触头材料 | Brass | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :24AWG | ||
产品信息
| 连接器性别 | Female | 系列 | 5556 |
| 产品子类型 | Contacts | 适用产品/相关产品 | :5557 Mini-Fit Jr. Receptacle Housing, 30067 Mini-Fit TPA, 42474 Mini-Fit BMI Panel Mount Housing, 5559 Mini-Fit Jr. Plug Housing |
环境参数
| 工作温度 | +105°C | ||
