点击放大查看
26-48-1055
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Bulk Molex 41671 Series 3.96mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT B/A HDR 5P TIN FRICTION LOCK Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Bag HEADER, 3.96MM, 5WAY .156 FRICTION LOCK HEADER; 5 CIRCUITS Molex KK 396 系列 3.96mm节距 5路 (1排) 直 引脚管座, 焊接端接, 7A , 通孔 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | KK | 零件号别名 | 0026481055 26-48-1055-PB A-41671-A05A102 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - KK 41671 Series | 额定电压 | 250 V |
| 最大额定电流 | 7A | ||
机械参数
| 间距 | 3.96 mm | 重量 | 0.005 |
| 端接方式 | Solder | 引脚间距 | :3.96mm |
| 安装类型 | Straight | 接触镀层 | Tin Over Copper |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 5 | 接触件端接 | :Through Hole Vertical |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 41671 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | ||
文档与媒体
PDF 文档
相关型号
26-48-1055
molex
Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Bulk Molex 41671 Series 3.96mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT B/A HDR 5P TIN FRICTION LOCK Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Bag HEADER, 3.96MM, 5WAY .156 FRICTION LOCK HEADER; 5 CIRCUITS Molex KK 396 系列 3.96mm节距 5路 (1排) 直 引脚管座, 焊接端接, 7A , 通孔
¥1.9108
详情

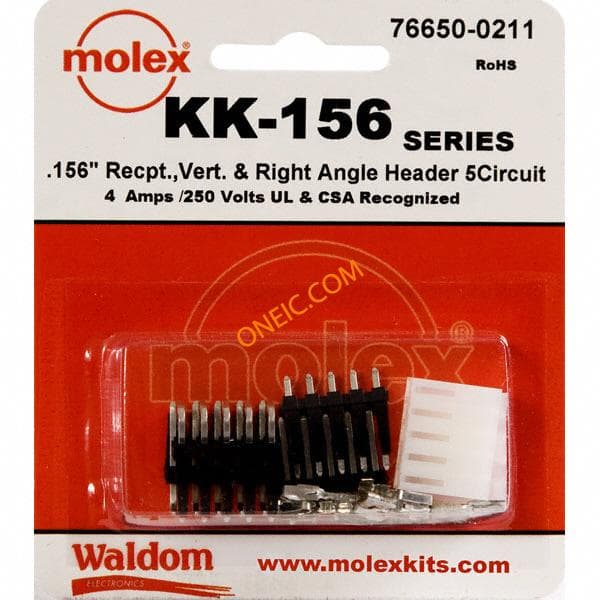

76650-0211
