点击放大查看
26-48-1026
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Bag Headers & Wire Housings R/A B/A HDR 2P TIN FRICTION LOCK WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM Nylon Breakaway Header.; 2; 0.156 in.; Tin |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | KK | 零件号别名 | 0026481026 A-41672-A02A102 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 间距 | 3.96 mm | 重量 | 0 |
| 端接方式 | Solder | 安装类型 | Right |
| 连接器类型 | :Wire to Board | 接触镀层 | Tin Over Copper |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 2 | 接触件端接 | :Through Hole Right Angle |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 41672 | 产品子类型 | Headers |
相关型号
26-48-1026
molex
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Bag Headers & Wire Housings R/A B/A HDR 2P TIN FRICTION LOCK WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM Nylon Breakaway Header.; 2; 0.156 in.; Tin
¥0.7684
详情

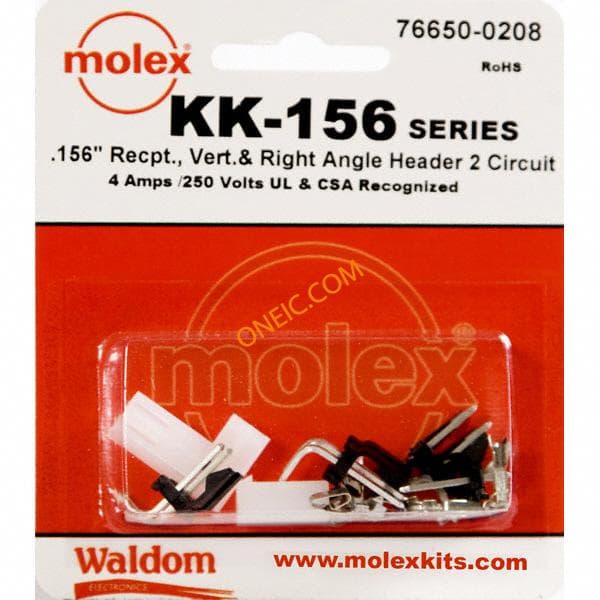

76650-0208
Molex Connector Corporation
KIT WMLX-261 Headers & Wire Housings KK-156 Connector Kit V & RA Hdr Rec 2Ckt KK-156 Connector Kit Kit Description:.156 Pitch Single Row Vertical and Right Angle Header and Receptacle, 2 CircuitKit Category:Wire to BoardSolution:Off the BoardPackaging:Retail PackNum. Pieces:16 KK-156 CONNECTOR KIT .156 PITCH, 2 CKT
¥17.4080
详情
