点击放大查看

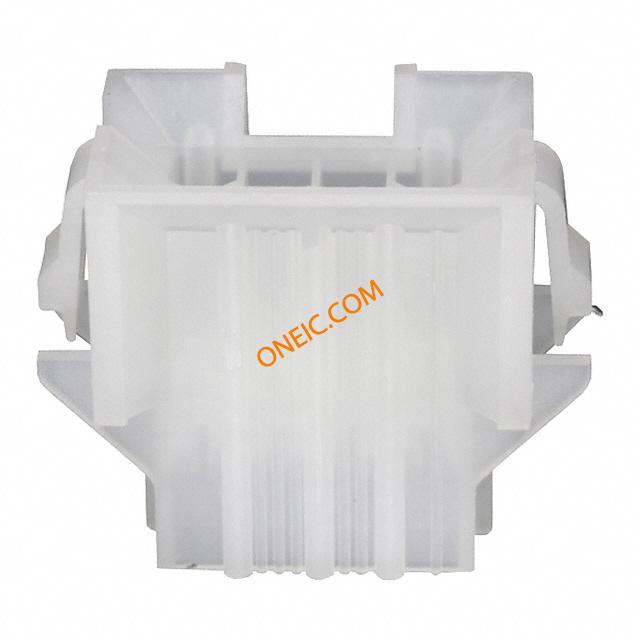

15-06-0085
| 制造商 | Molex, LLC |
| 描述 | Conn Housing M 8 POS 4.2mm Crimp ST Panel Mount Bag CONN PLUG 8POS W/PANEL MNT EARS Plug Housing 4.20mm BMI UL94V-2,D/R,8w Headers & Wire Housings PLUG DUAL ROW 8POS w/panel mount ears PLUG & SOCKET HOUSING, PLUG, NYLON MINIFIT BMI PLUG PANMNT V-2 MINIFITBMIPLUGPANMNTV-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 8 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015060085 42475-0811 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 输出数量 | 8 | 最大额定电流 | 10 A, 7 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Natural | 深度 | 25.6mm |
| 间距 | 0.165" (4.20mm) | 宽度 | 16.8mm |
| 长度 | 24.2mm | 重量 | 0.002 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Male Pin | 基体材料 | :PA Polyamide (Nylon) 6/6 |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Plug | 排数 | 2 |
| 壳体材料 | Nylon | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | Male | 系列 | 42475 |
| CAD图纸 | 3D CAD Model | 制造商全称 | Mini-Fit BMI |
| 产品子类型 | Wire Housings | 电路数 | 8 |
| 应用细节 | Power, Wire-to-Wire, Wire-to-Board | 适用产品/相关产品 | Mini-Fit BMI Plug |
文档与媒体
相关型号
0039012080
molex
Conn Housing RCP 8 POS 4.2mm Crimp ST Bag CONN RECEPT 8POS DUAL
0039000121
molex
Contact PIN Crimp ST Cable Mount Bag MINIFIT TERM CRP MALE L BS TIN
0039000219
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG 30GOLD CONN TERM MALE 18-24AWG GOLD
0039012085
molex
Conn Housing RCP 8 POS 4.2mm Crimp ST Bag CONN RECEPT 8POS DUAL
0039000061
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-24AWG TIN
39-00-0224
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 16AWG GOLD CRIMP Headers & Wire Housings CRIMP TERMINAL 16 AWG

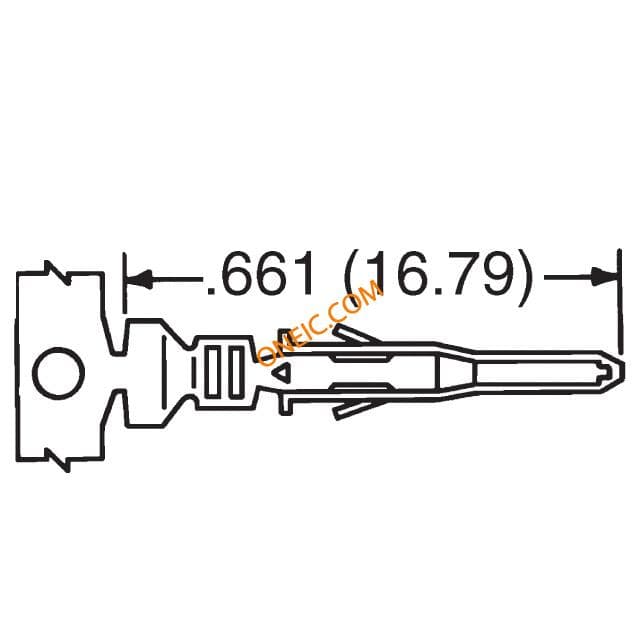

39-00-0088
Molex
Headers & Wire Housings PIN 28-22 AWG BULK CONN TERM MALE 22-28AWG GOLD Contact PIN Crimp ST Cable Mount Loose Piece
0460123241
Molex
CONTACT PIN CRIMP ST CABLE MOUNT REEL MF PLUS HCS CRIMP TERM MALE
0460121242
Molex, LLC
. 0460121242 - Pin Contact Gold 18-20 AWG Crimp from Molex. from now!
0039000049
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 22-28AWG TIN
0039000122
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BS TIN 0039000122
0460121142
Molex
Contact PIN Crimp ST Cable Mount Bag MF PLUS HCS CRIMP TERM MALE
0039000124
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BS TIN
0039000128
Molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT TERM CRP MALE C BZ TIN
15-06-0080
Molex Connector Corporation
CONN RECEPT 8POS W/PANEL MOUNT Housing 4.2mm BMI recept,D/R,UL94V-2,8w Headers & Wire Housings RECPT DUAL ROW 8POS w/panel mount ears 4.20mm Pitch Mini-Fit® BMI Receptacle Housing, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 8 Circuits MINIFIT BMI RCPT/PANMNT V-2 Molex MINI-FIT BMI 系列 2 行 4.2mm 节距 8 路 直 母 面板安装 压接连接器外壳

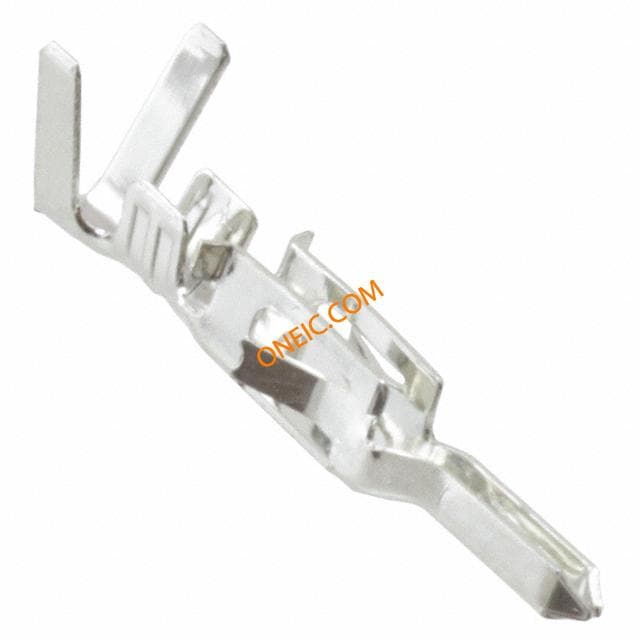

0460121141
Molex Inc
MF PLUS HCS CRIMP TERM MALE

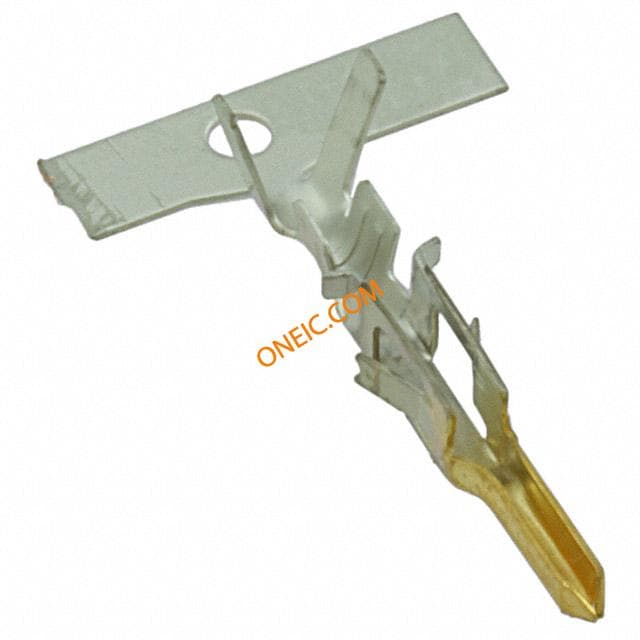

0460121241
Molex Inc
CONN PIN HCS 18-20AWG GOLD
0039000041
Molex Inc
CONN TERM MALE 18-24AWG TIN Contact PIN Crimp ST Cable Mount Bag

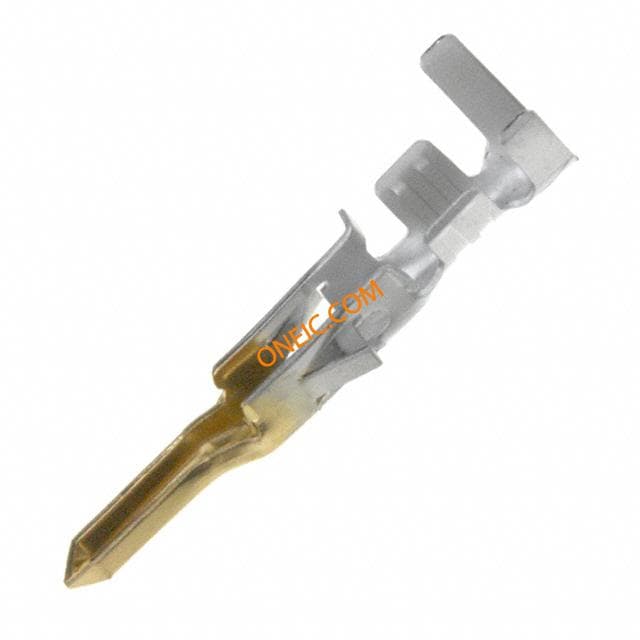

39-00-0095
