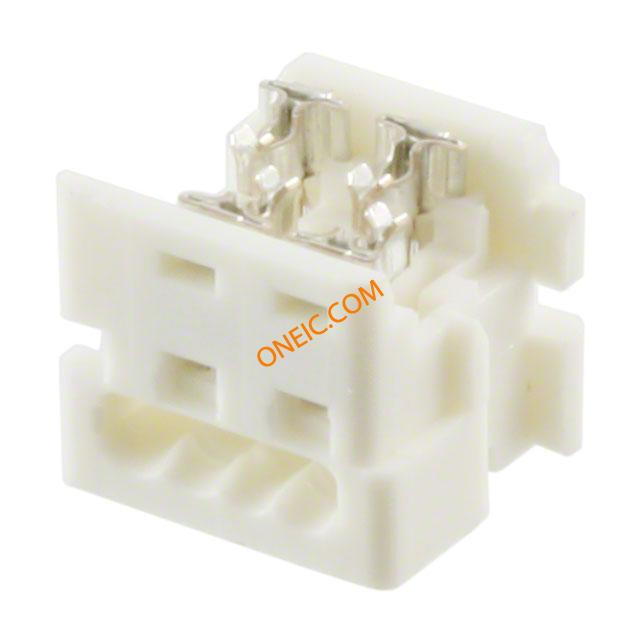

0903270304
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 4 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 4POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 4; tinned; 1.2A; 250V |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大电压 | 250V | 最大额定电流 | 1.2/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 7 mm |
| 间距 | 2.54 mm | 高度 | 6.4 mm |
| 重量 | 0.31 g | 包装方式 | Bag |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | 1.27mm | 外壳颜色 | White |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 7.59 mm |
| 包装数量 | 1000 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 触点数 | 4 |
| 位数 | 4 | 接触镀层厚度 | 78.7µin (2.00µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1000 | 类型 | IDC Connector |
| 连接器性别 | RCP | 已删除 | Compliant |
| 产品特性 | Feed Through | 适配器系列 | PicoFlex |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0903253004
molex
Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 4POS 1.27MM GOLD
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
76650-0123
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,12,16,4,6,8POS 1.2A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.27MM PITCH 250V 28-26 WIRE SIZE KIT PICOFLEX VERT 1.27MM ASSORTE Headers & Wire Housings PICOFLEX CONN KIT VERT Kit Description:SMT Vertical Header and IDT ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:24 PICOFLEX CONNECTOR KIT SMT VERT HEADER & IDT RECEPT

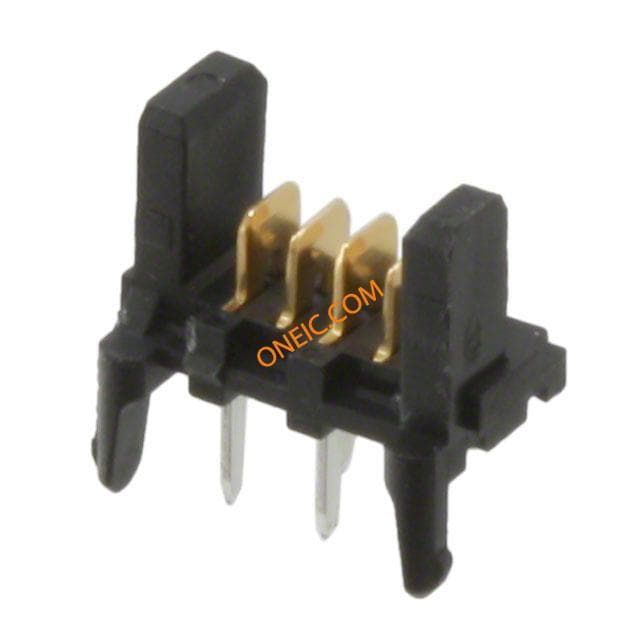

90325-7004
molex
Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 4POS 1.27MM GOLD T/H
90814-0804
molex
Conn Ribbon Cable Connector HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS 1.27MM SMD TIN Header 1.27mm,SMT, vert, low pro, 4w Headers & Wire Housings PF50 SMT HDR 4P HEADER, PICOFLEX, SMT, 4WAY Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 表面安装
0690081090
Molex
Handtool For 90327, 90584 and 91577 Picoflex Connectors, 4-26 Circuit TOOL HAND PICO FLEX Tool: for crimping; connectors; Application: MX-90327,MX-90584

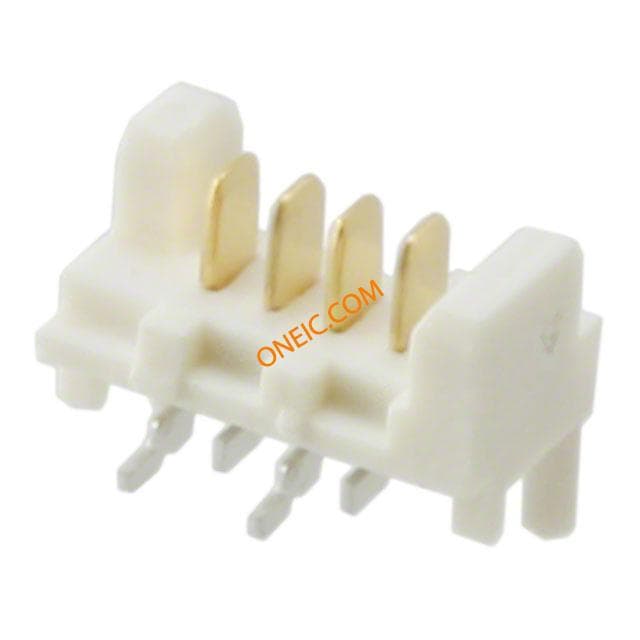

90814-3804
Molex Connector Corporation
CONN HEADER 4POS 1.27MM SMD GOLD Headers & Wire Housings 1.27MM 4P VERT HDR LO-PRO SMT,AU Conn Ribbon Cable Connector HDR 4 POS 2.54mm Solder ST SMD Tube

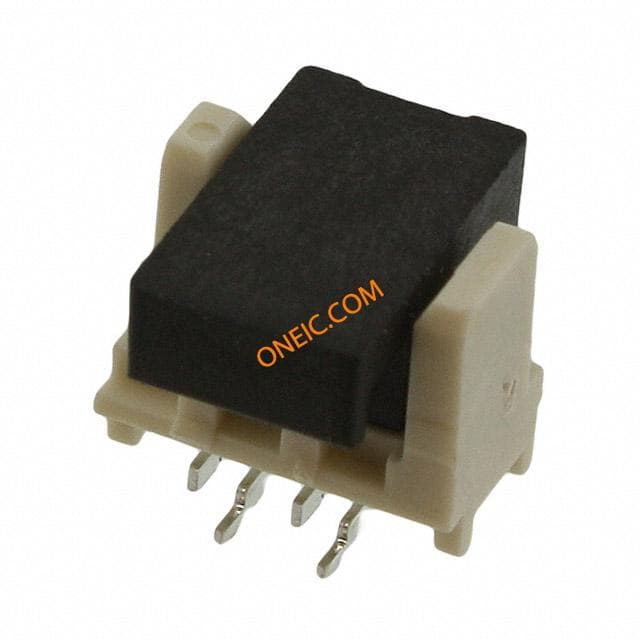

0934050504
Molex Inc
4POS REVERSE PICOFLEX SMD HDR
90325-0004
Molex Connector Corporation
CONN HEADER 4POS 1.27MM TIN 4 way through board header,1.27mm pitch Headers & Wire Housings PICOFLEX 4P HDR LOPRO SN Conn Ribbon Cable Connector HDR 4 POS 1.27mm Solder ST Thru-Hole Bag HEADER, PICOFLEX, 4WAY Straight header 4P, 90325-0004, Molex Molex PICOFLEX 系列 4路 1.27mm节距 公 IDC 连接器 , 通孔

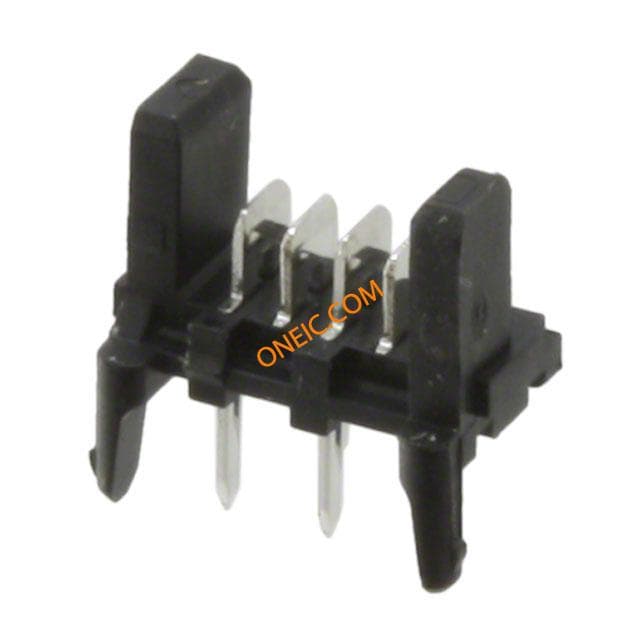

90325-9004
