点击放大查看

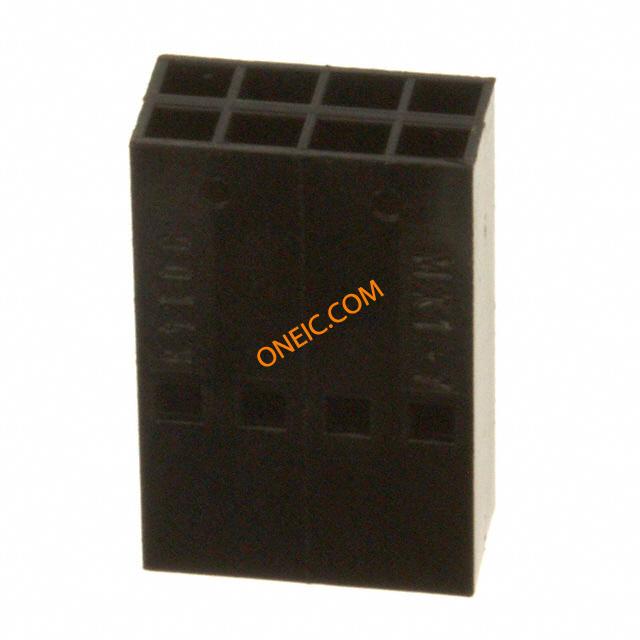

0901430008
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 8 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 8POS .100" DL CRIMP |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 3/Contact | ||
机械参数
| 颜色 | Black | 深度 | 15.24 |
| 间距 | 2.54 mm | 高度 | 5.08 |
| 包装方式 | Bag | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 壳体材料 | Polyphenylene Oxide |
| 总长度 | 10.16 | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
文档与媒体
相关型号
0901192109
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; in bulk; 3A

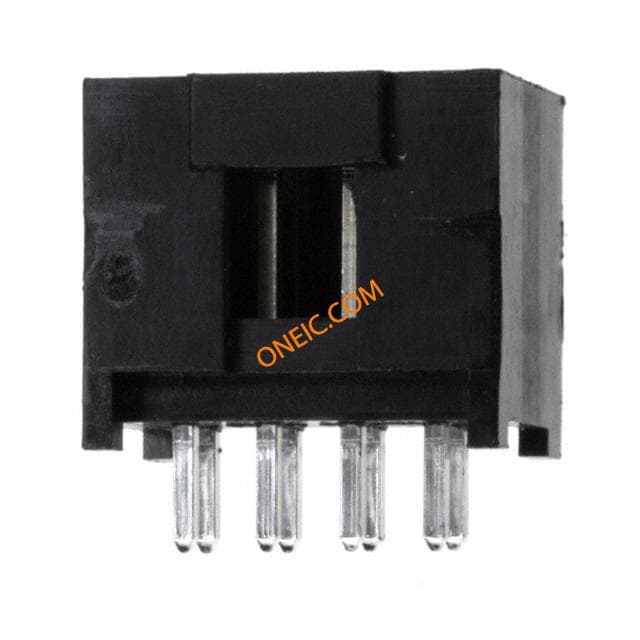

0901301208
molex
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR GOLD

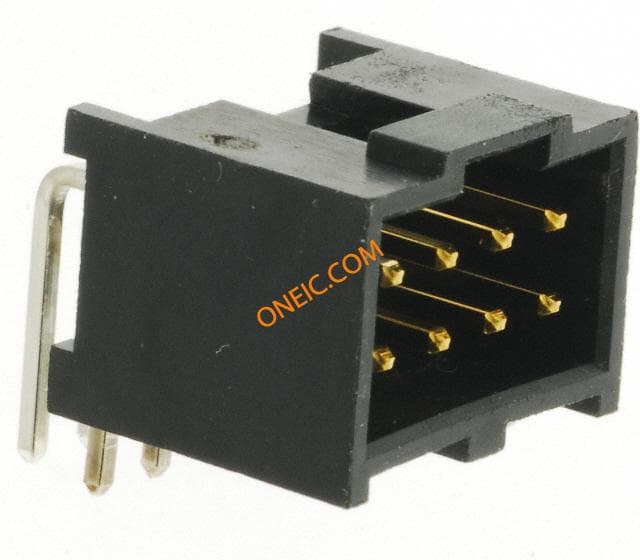

0901303208
molex
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 8POS .100" R/A GOLD
0901190110
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-24AWG GOLD Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901190109
molex
Contact SKT Crimp ST Cable Mount T/R CONN TERM FEMALE 22-24AWG TIN Contact; female; 22÷24AWG; C-Grid III; tinned; crimped; tape; 3A
0901192122
molex
Contact SKT Crimp ST Cable Mount Loose Piece C-GRID TERM FEM CRP 26/28AWG
0901190122
molex
Contact SKT Crimp ST Cable Mount Reel C-GRID TERM FEM CRP 26/28AWG
0901192120
molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" TIN

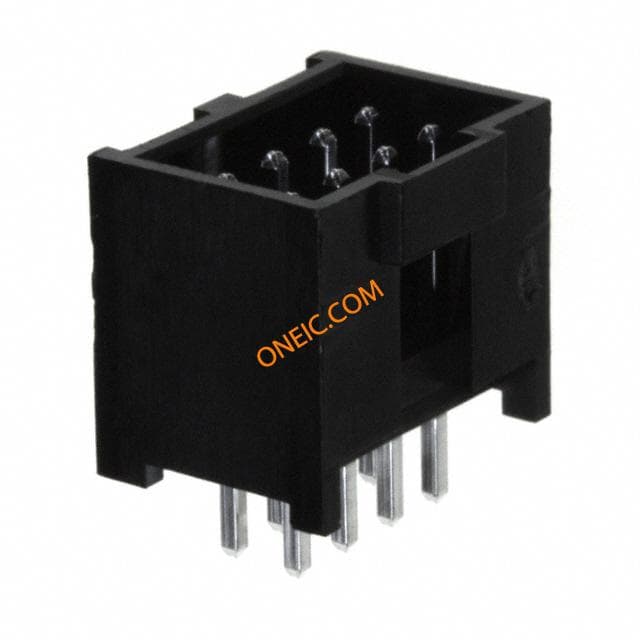

0901301108
molex
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR TIN
90119-2111
Molex
Headers & Wire Housings FM C-GRID TERM 22/24AWG CONN TERM FEMALE 22-24AWG C-Grid III Terminal 22-24 AWG gold, bag Contact SKT Crimp ST Cable Mount Loose Piece TERMINAL, FEMALE, AWG22-24 C-GRID TERM FEM CRP LP AU-F 22/24AWG Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A Molex C-GRID III 系列 母 压接接线端子, 压接, 镀金镀镍触点

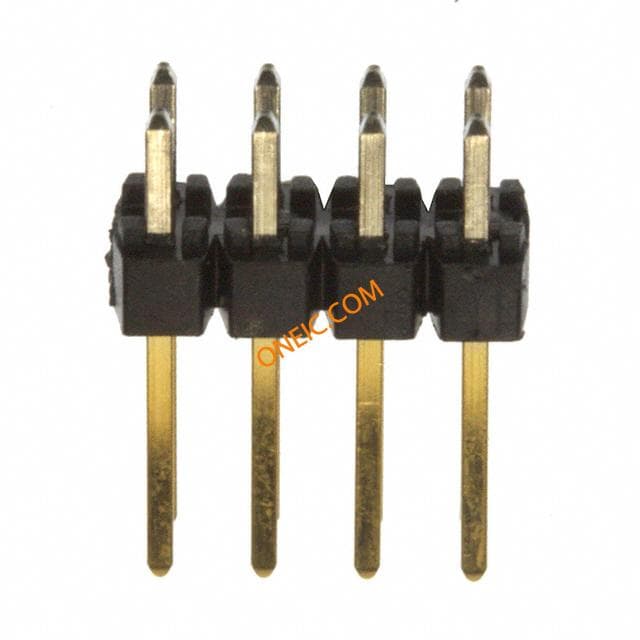

0901310764
Molex
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR GOLD Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Bag

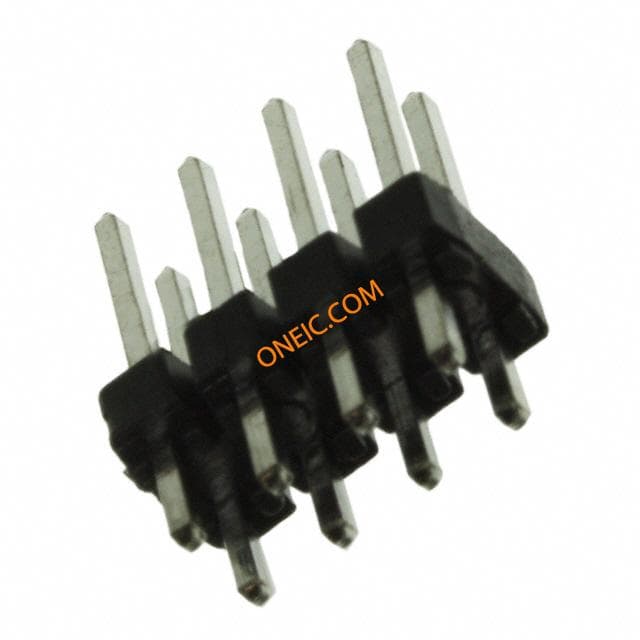

0901310124
Molex
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 8POS .100" STR TIN
0901192110
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 22-24AWG .100" GOLD Contact; female; 22÷24AWG; C-Grid III; gold plated; crimped; 3A
0901192121
Molex
Contact SKT Crimp ST Cable Mount Bag CONN SOCKET 26-28AWG .100" GOLD Contact; female; 26÷28AWG; C-Grid III; gold plated; crimped; 3A

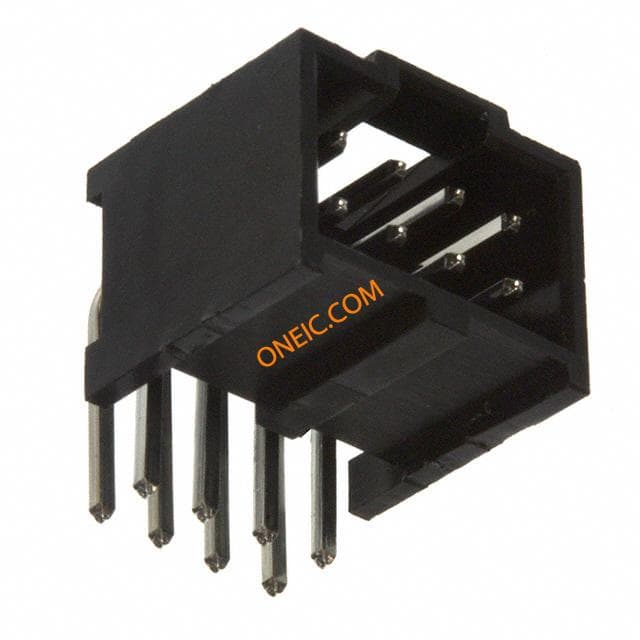

90130-3108
Molex Connector Corporation
CONN HEADER 8POS .100" R/A TIN Molex 90130 Series 2.54mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HDR SHROUDED 8P R/A Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray Molex C-GRID III 系列 2.54mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔

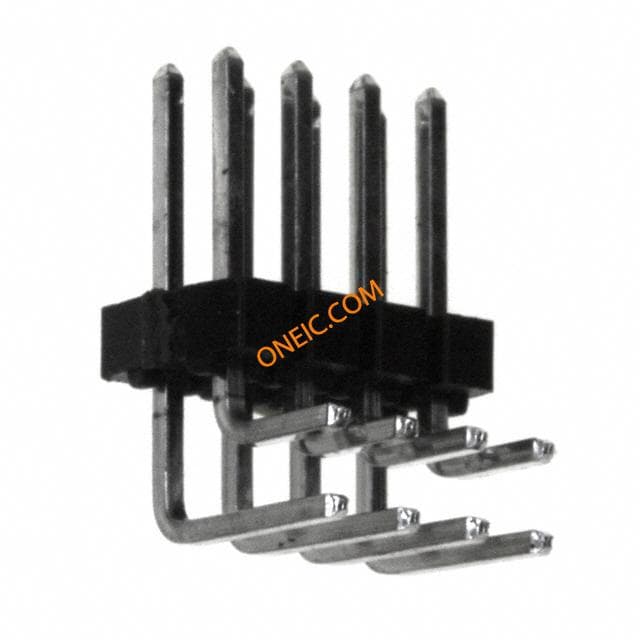

90122-0124
Molex Connector Corporation
CONN HEADER 8POS .100" R/A TIN Headers & Wire Housings 2.54MM CGRIDIII HDR 8P R/A DR TIN Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Tray

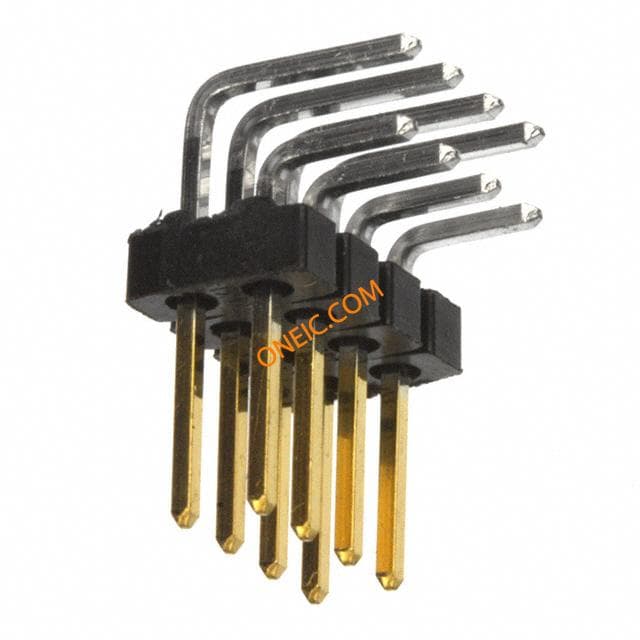

90122-0764
