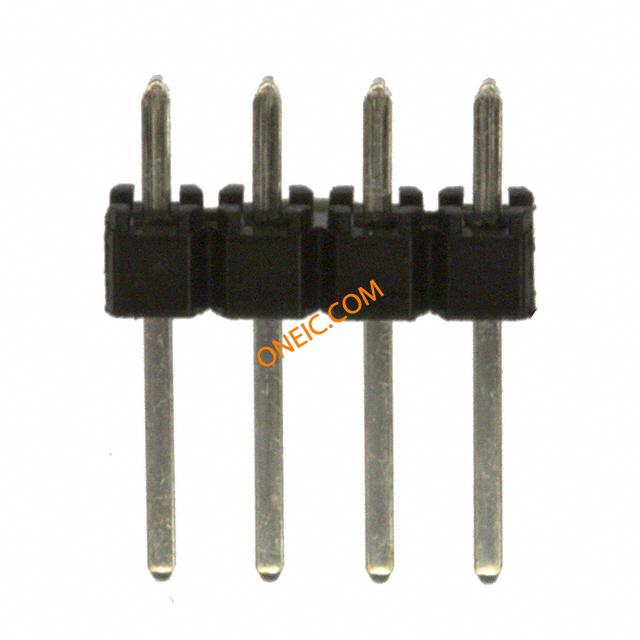

0901200124
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 4POS .100" STR TIN Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 350V | 最小供电电压 | 350V |
机械参数
| 颜色 | Black | 深度 | 2.54 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 9.25 mm |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 10.16 mm |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.266" (6.75mm) | 接触镀层厚度 | 118.1µin (3.00µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 125C | ||
相关型号

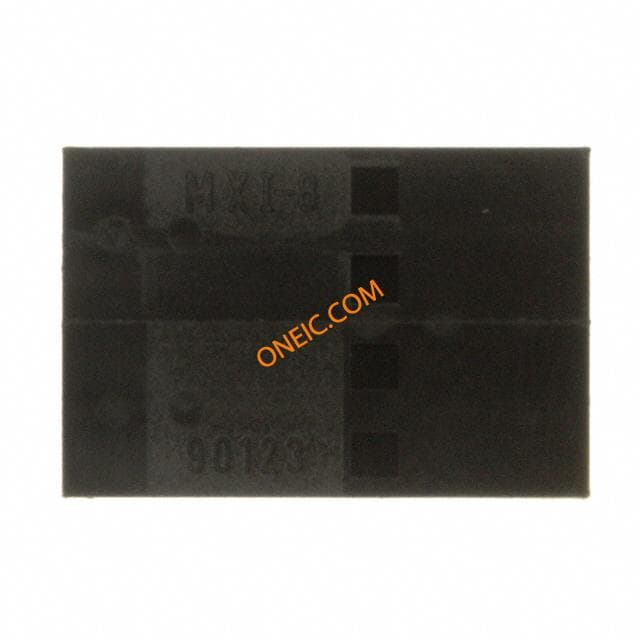

0901230104
molex
Conn Housing RCP 4 POS 2.54mm Crimp ST Bag CONN HOUSING 4POS .100" SINGLE Plug; wire-board; C-Grid III; female; PIN:4; w/o terminals; 2.54mm

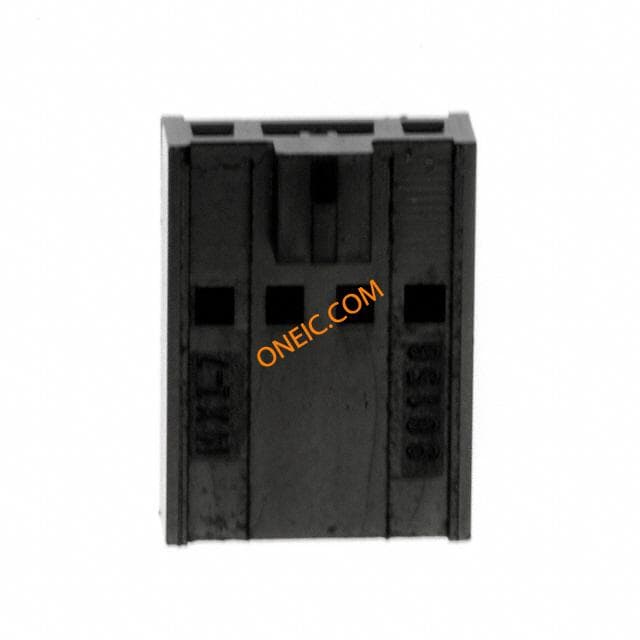

0901560144
