0877591250
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 12 POS 2mm Solder ST SMD Tube CONN HEADER 12POS 2MM VERT SMD Pin header; pin strips; Milli-Grid; male; PIN:12; 2mm; SMT; 2x6 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact | 最小输入电压 | 125VAC |
机械参数
| 颜色 | Black | 深度 | 4 |
| 间距 | 2 mm | 高度 | 6.5 |
| 重量 | 0.85 g | 包装方式 | Tube |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2mm |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 11.9 |
| 包装数量 | 2200 | 连接器 - 电缆 | pin header |
| 触点数 | 12 | 位数 | 12 |
| 接触长度 - 配合 | 0.150" (3.81mm) | 接触镀层厚度 | 15µin (0.38µm) |
| 第一连接器安装特征 | 2x6 | ||
产品信息
| SPG | 2200 | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 产品特性 | Board Guide |
| 适配器系列 | Milli-Grid | 单元数量 | 1980 |
| 加载位置数 | All | ||
文档与媒体
相关型号

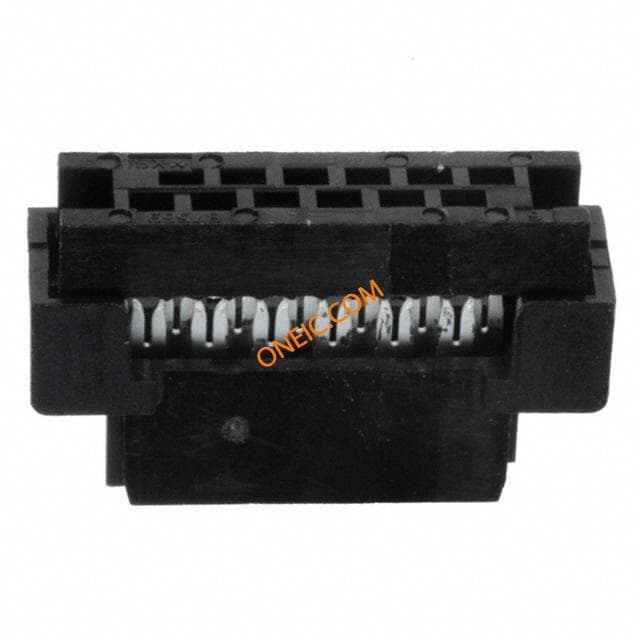

0875681273
molex
Conn IDC Connector RCP 12 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 12POS 2MM IDT GOLD
0791081005
molex
Conn FFC/FPC Connector SKT 12 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 12CKT
0791091255
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 12CKT
0791081055
molex
Conn FFC/FPC Connector SKT 12 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 12CKT
0791091205
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 12CKT

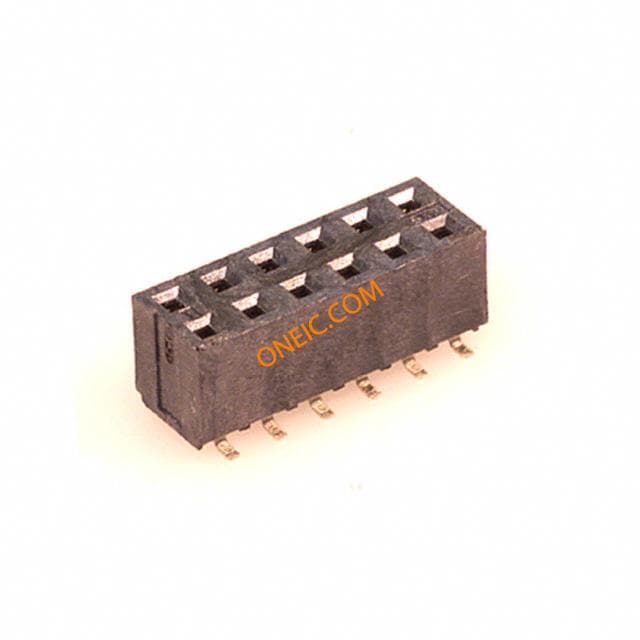

0791091005
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube CONN RECEPT 12POS 2MM VERT SMD
0791098455
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 12CKT
0791077055
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 12POS
0791098655
molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 12CKT
0791091055
Molex
Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 12CKT SMD
0791077255
Molex
Conn Socket Strip RCP 12 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 12CKT

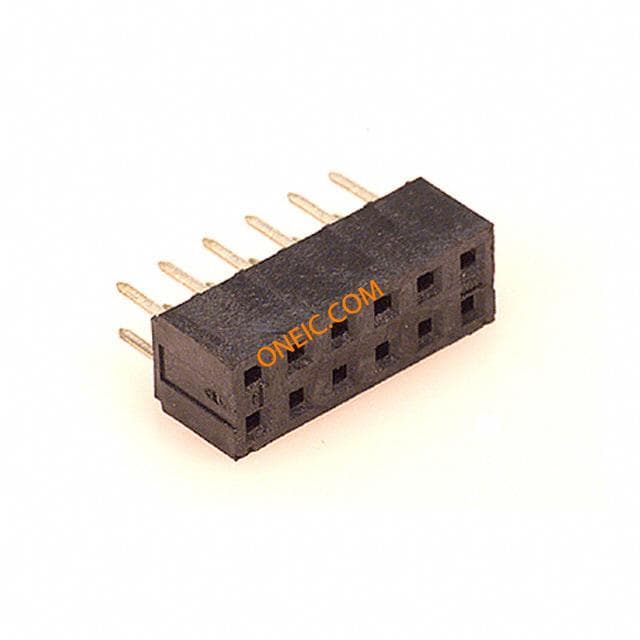

0791077005
Molex
Conn Socket Strip RCP 12 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 12POS VERT
0791077205
Molex
Conn Socket Strip RCP 12 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 12CKT
0791077130
Molex
Conn Socket Strip RCP 12 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 12POS

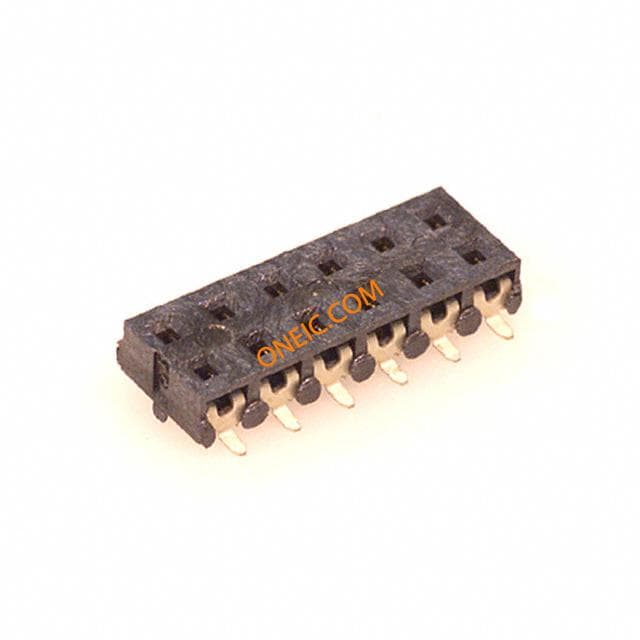

87340-1224
Molex Connector Corporation
CONN RECEPT 12POS 2MM LOPRO SMD Headers & Wire Housings 1P VERT SMD RECPT Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Tube
87368-1224
Molex Connector Corporation
CONN RECEPT 12POS 2MM SMD GOLD Headers & Wire Housings 2MM RECEPT. 12 CKT Side Entry

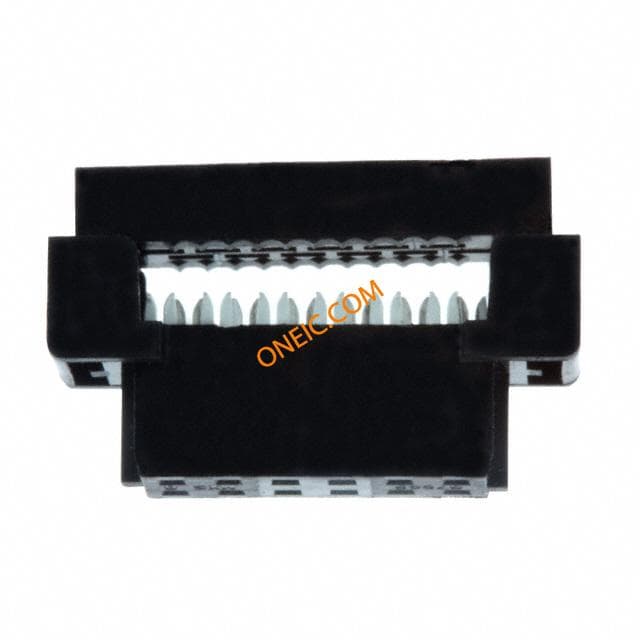

87568-1263
Molex Connector Corporation
CONN RECEPT 12POS 2MM IDT GOLD Headers & Wire Housings MGRID 12CKT RECPT IDT W/O PKEY LRMP Conn IDC Connector RCP 12 POS 2mm IDT RA Cable Mount Tray

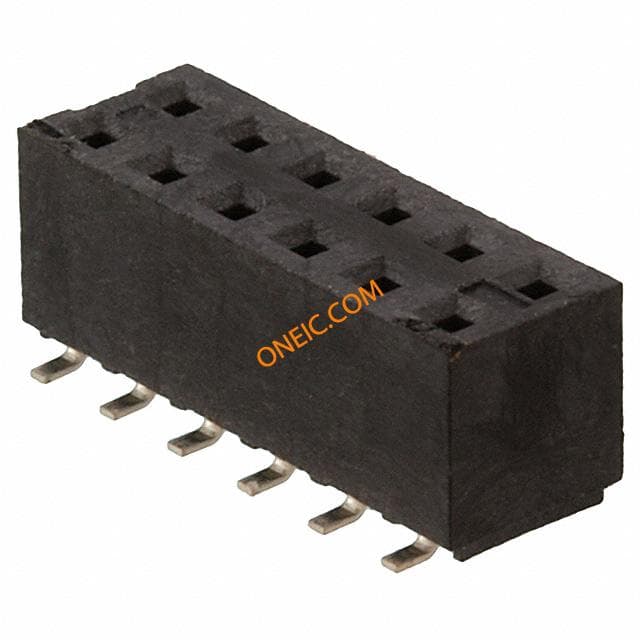

79109-8405
