点击放大查看

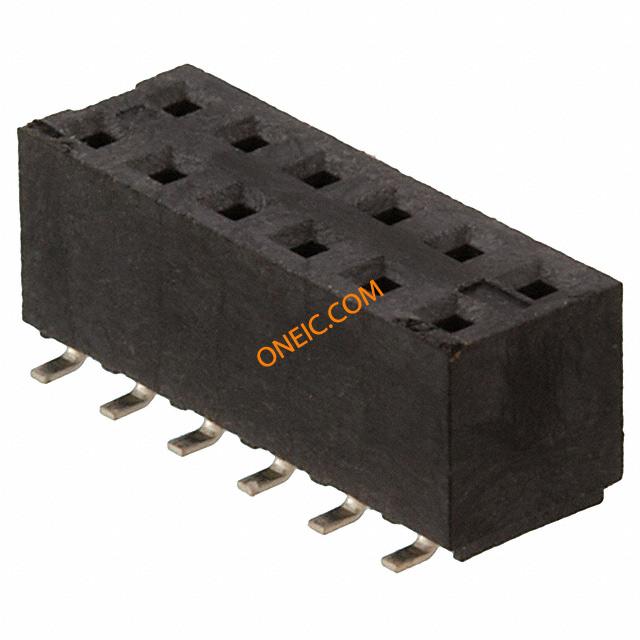

79109-8405
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPT 12POS 2MM VERT SMD Headers & Wire Housings 2mm VERT SMT 12POS Conn Socket Strip RCP 12 POS 2mm Solder ST SMD Embossed T/R |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 其他名称 | WM6579CT |
| 零件号别名 | 0791098405 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 500 | 工厂包装数量 | 2500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tape & Reel (TR) | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | SMD | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 位数 | 12 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 系列 | 79109 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 55 C to + 105 C | ||
