点击放大查看

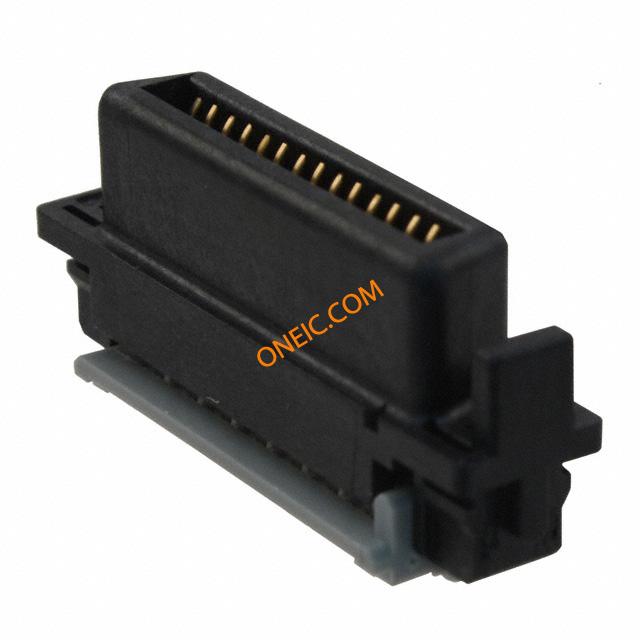

0716603530
| 制造商 | |
| 描述 | Conn EBBI RCP 30 POS 2.54mm IDT RA Cable Mount 30 Terminal 1 Port Tray EBBI 50D VT RCPT IDT 30CKT |
商业参数
| 交货时间 | 365 Days | 子类别 | Connector SCSI |
| 标准包装数量 | 1,120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact | 最小输入电压 | 30V |
机械参数
| 深度 | 8.76 | 间距 | 2.54 |
| 高度 | 14.22 | 包装方式 | Tray |
| 端接方式 | IDT | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 30.35 | 触点数 | 30 |
| 位数 | 30 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | EBBI | 连接器性别 | RCP |
| 产品特性 | Assembly Kit | 端口数 | 1 |
| 行业别名 | 71660-3530, 716603530 | ||
环境参数
| 工作温度 | 105 | ||
文档与媒体
相关型号
0622005500
molex
Punch With Function Cutter SCSI & EBBI CABLE PRESS A
0638170000
Molex
MANUAL WIRE STRIPPER TOOL HAND STRIPPER 8-34AWG Cable Accessories Wire Stripper Blade

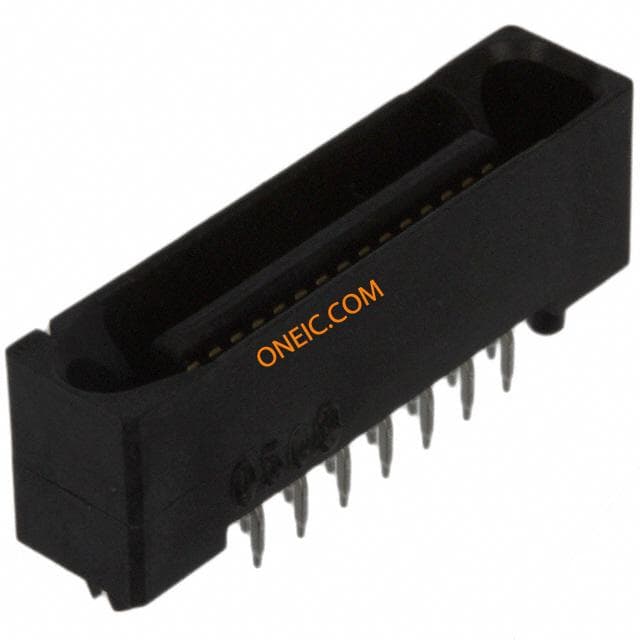

71661-7030
