点击放大查看

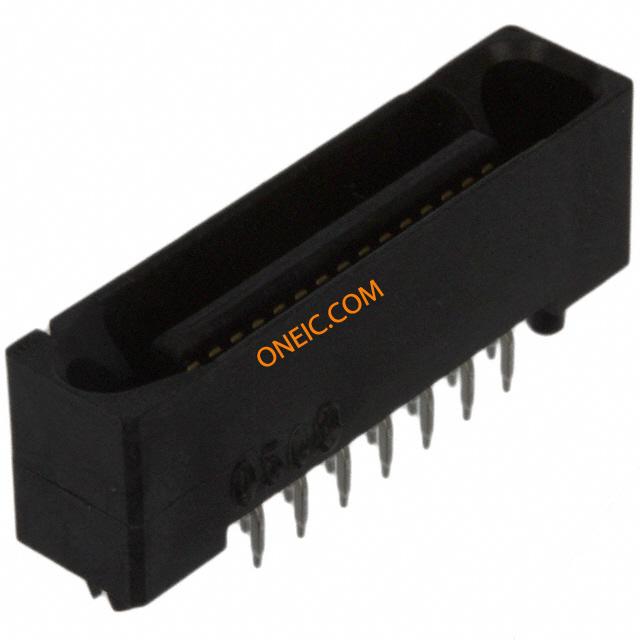

71661-7030
| 制造商 | |
| 描述 | CONN PLUG VERTICAL 30POS .050 Board to Board & Mezzanine Connectors 1.27MM PLG 30P VT .110 TAIL Conn EBBI PL 30 POS 2.54mm Solder ST Thru-Hole 30 Terminal 1 Port Tray |
| 分类 |
商业参数
| 商标名 | EBBI 50D | 零件号别名 | 0716617030 |
| 产品类别 | Board to Board & Mezzanine Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1120 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 30 V | 最大额定电流 | 1 A |
机械参数
| 间距 | 0.050" (1.27mm) | 包装方式 | Tray |
| 安装类型 | Through Hole | 连接器类型 | Plug, Center Strip Contacts |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 板面高度 | 0.362" (9.20mm) |
| 触点数 | 30 | 位数 | 30 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 系列 | 71661 | 产品特性 | Board Guide |
| 产品子类型 | Plugs | ||
文档与媒体
相关型号
76650-0173
molex
BMI PCB Vertical Plug And Receptacle Kit 2.79mm Tail Length KIT CONN EBBI 50D BLIND MATE BTB Board to Board & Mezzanine Connectors EBBI50D KIT BLINDMATE BTB Kit Description:BMI PCB Vertical Plug and Receptacle 2.79mm Tail lengthKit Category:Board to BoardSolution:Blind-MatePackaging:Clamshell: 9" by 4"Num. Pieces:12 EBBI 50D CONNECTOR KIT BMI PCB VERT PLUG & RECEPT 2.79MM TAIL LENGTH
0015921430
Molex
Conn EBBI RCP 30 POS 2.54mm Solder ST Thru-Hole 30 Terminal 1 Port Tray CONN RECEPT VERTICAL 30POS .050
0716603530
Molex
Conn EBBI RCP 30 POS 2.54mm IDT RA Cable Mount 30 Terminal 1 Port Tray EBBI 50D VT RCPT IDT 30CKT

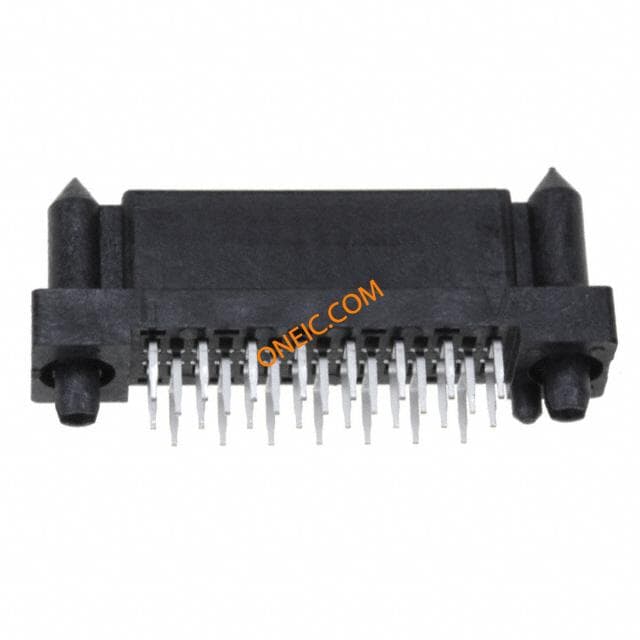

71660-7030
