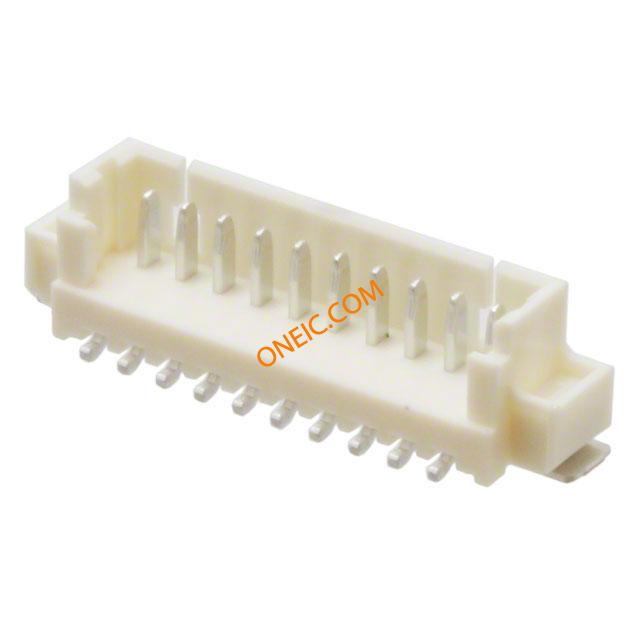

0533981071
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 10 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 10POS 1.25MM VRT SMD |
| 分类 |
商业参数
| 其他名称 | WM7614CT | 标准包装数量 | Cut Tape |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 1/Contact A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
机械参数
| 颜色 | Natural | 深度 | 3.7 mm |
| 间距 | 1.25 mm | 高度 | 4.7 mm |
| 包装方式 | Embossed Tape and Reel | 端接方式 | Solder |
| 触头类型 | Blade Pin | 外壳颜色 | Natural |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 4/6 | 总长度 | 17.65 mm |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 39µin (1.00µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Solder Retention | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 85C | ||
