点击放大查看

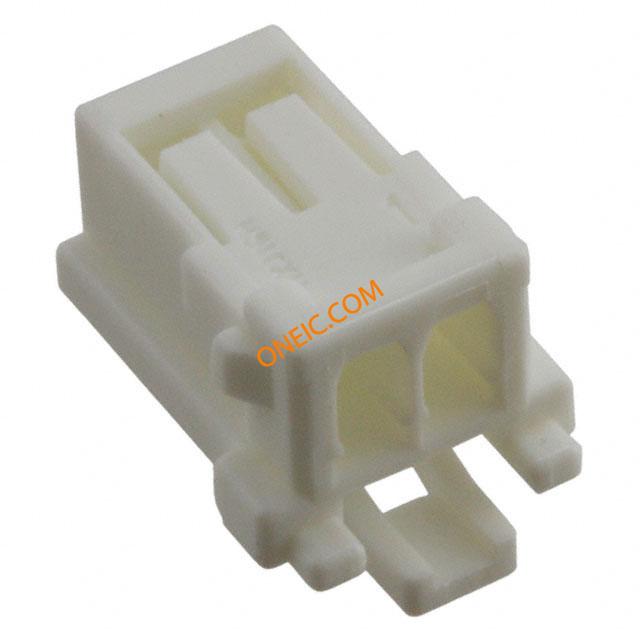

0513820200
| 制造商 | |
| 描述 | Conn Housing F 2 POS 2mm Crimp ST Cable Mount Bag CONN RCPT 2CKT 2MM WTB |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最小输入电压 | 250VDC|250VAC | 最小供电电压 | 250VDC/250VAC |
机械参数
| 颜色 | White | 深度 | 10.9 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 6.95 mm |
| 包装方式 | Bag | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 7.4 mm | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
环境参数
| 工作温度 | -25C to 85C | ||
文档与媒体
相关型号
0593708000
molex
Contact SKT Crimp ST Cable Mount Bag 2.0 WTB CRIMP RECPT
0561349100
molex
Contact SKT Crimp ST Cable Mount Bag CRIMP RECPT 22-28AWG 2MM Conn Contact F 1 POS Crimp ST Cable Mount Bag
0561348100
molex
Contact SKT Crimp ST Cable Mount Bag 2.0 WTB CRIMP REC LOOSE
0559350230
molex
Conn Shrouded Header PL 2 POS 2mm Solder RA Thru-Hole Tray 2.0 WTB PLG HSG ASSY RA 2CKT
0559320230
molex
Conn Wire to Board HDR 2 POS 2mm Solder ST Thru-Hole Tray 2.0 WTB PLG HSG ASSY STR

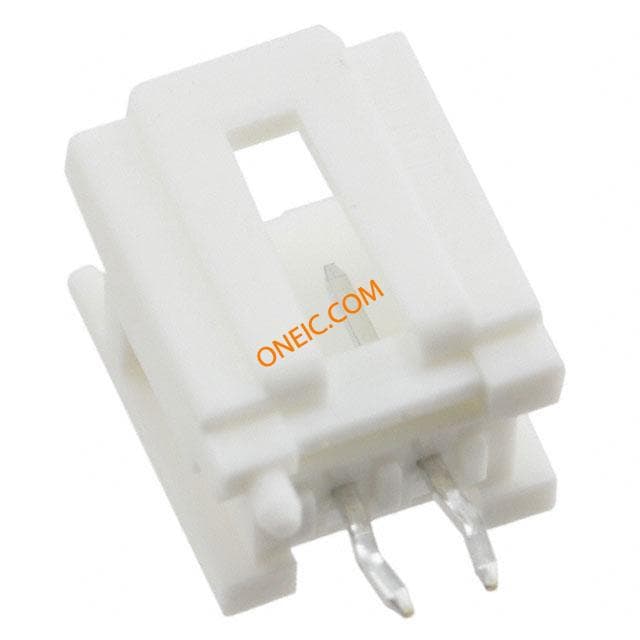

0559320210
