点击放大查看

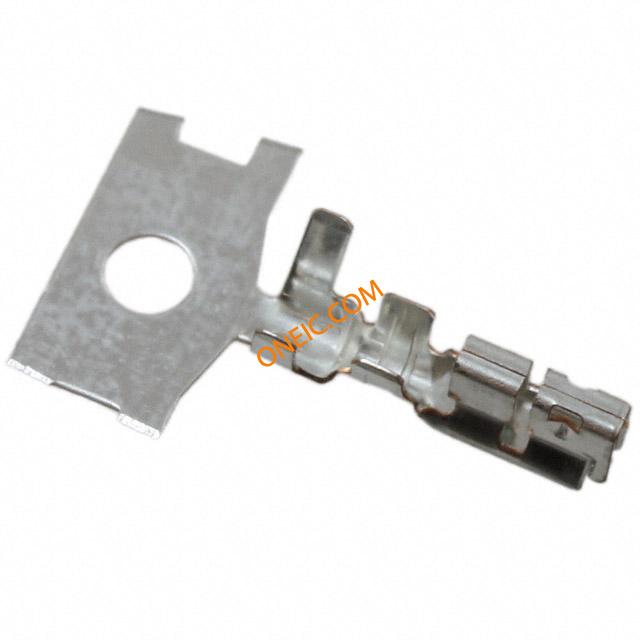

0561349000
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Reel 2.0 WTB CRIMP REC CHAIN Contact; female; 22÷28AWG; MicroClasp; tape; crimped, on cable; 2mm |
| 分类 |
商业参数
| 其他名称 | WM3454CT | 标准包装数量 | 9,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3 A |
机械参数
| 深度 | 2.64 mm | 间距 | Not Required mm |
| 高度 | 2.51 mm | 重量 | 0.26 g |
| 包装方式 | Reel | 导线线规 | 22-28 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 2mm |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 封装形式 | tape | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 6.7 mm |
| 包装数量 | 450 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 35µin (0.90µm) | ||
产品信息
| SPG | 450 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | MicroClasp |
| 单元数量 | 9000 | ||
环境参数
| 工作温度 | 85 | ||
相关型号
0513530804
molex
2.0 WTB DUAL CONN DIP REC HSG 8CKT BLUE 2.0 WTB DUAL CONN DIP REC HSG
0638116300
molex
Hand Crimp Tool HAND CRIMP TOOL
0513533401
Molex, LLC
. 0513533401 - 34 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!
0512423002
molex
Conn Housing F 30 POS 2mm Crimp ST Bag 2.0 WTB DUAL CONN REC HSG 30CKT
0513821200
Molex, LLC
. 0513821200 - 12 Position Rectangular Housing Connector Receptacle White 0.079" (2.00mm) from Molex. from now!
0639019600
molex
FINE ADJUST APPLICATOR FineAdjust Applicator For 2.00mm Pitch Female Crimp Terminal
0639119600
molex
T2 TERMINATOR ASSEMBLY T2 TERMINATOR FOR 2.00MM (.079) PITCH FEMALE CRIMP TERMINAL
0513532600
Molex, LLC
. 0513532600 - 26 Position Rectangular Housing Connector Receptacle White 0.079" (2.00mm) from Molex. from now!
0513820201
Molex, LLC
. 0513820201 - 2 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!
0513820900
molex
Conn Housing RCP 9 POS 2mm Crimp ST Bag 2.0 WTB HSG 9CKT
0513820400
molex
Conn Housing RCP 4 POS 2mm Crimp ST Bag 2.0 WTB HSG 4CKT
0513821300
molex
Conn Housing RCP 13 POS 2mm Crimp ST Bag 2.0 WTB HSG 13CKT
0512423000
Molex
Conn Housing RCP 30 POS 2mm Crimp ST Bag 2.0 WTB DUAL CONN REC HSG 30CKT
0513821000
Molex
Conn Housing RCP 10 POS 2mm Crimp ST Bag 2.0 WTB HSG 10CKT
0513821400
Molex
Conn Housing RCP 14 POS 2mm Crimp ST Bag 2.0 WTB HSG 14CKT
0512422000
Molex
Conn Housing RCP 20 POS 2mm Crimp ST Bag 2.0 WTB DUAL CONN REC HSG 20CKT

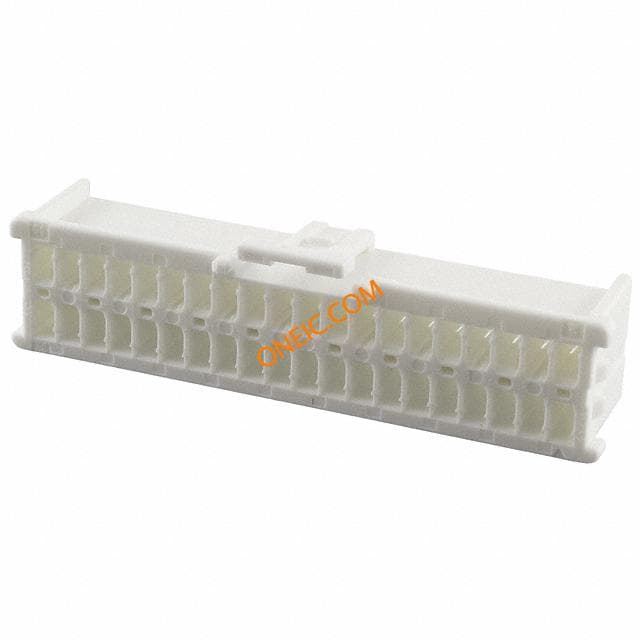

0513534000
