0510470400
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 4 POS 1.25mm Crimp ST Bag Conn Housing M 4 POS 1.25mm Crimp ST Cable Mount Bag 1.25 W/W CONN PLUG HSG 4CKT Conn Housing PL 4 POS 1.25mm ST Bag |
| 分类 |
商业参数
| 交货时间 | 48 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数
| 颜色 | Natural | 深度 | 8 mm |
| 间距 | 1.25 mm | 高度 | 3.2 mm |
| 包装方式 | Bag | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 6.75 mm |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 行业别名 | 51047-0400, 510470400 |
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
相关型号
0510210400
Molex, LLC
. 0510210400 - 4 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
0501338000
Molex, LLC
. 0501338000 - Pin Contact Tin 28-32 AWG Crimp from Molex. from now!
0501258000
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 26-28AWG TIN T&R
0510210401
Molex, LLC
. 0510210401 - 4 Position Rectangular Housing Connector Receptacle Black 0.049" (1.25mm) from Molex. from now!

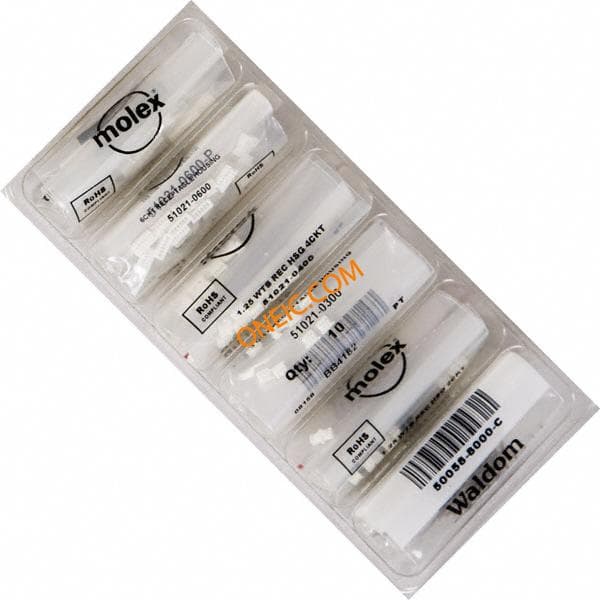

76650-0125
