0502128000
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A |
| 分类 |
商业参数
| 交货时间 | 20 Days | 子类别 | Connector Contact |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 2 A |
| 最小供电电压 | 125VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 1.88 mm | 间距 | Not Required mm |
| 高度 | 2 mm | 重量 | 0.12 g |
| 包装方式 | Reel | 导线线规 | 24-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 4.7 mm |
| 包装数量 | 40000 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
产品信息
| SPG | 40000 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | Mi II™ 50212, Micro-Latch™, Sherlock™ |
| 适配器系列 | DuraClik, Mi II, Sherlock | 单元数量 | 10000 |
| 行业别名 | 50212-8000, 502128000 | 工具类型/特性 | MX-63819-0500 |

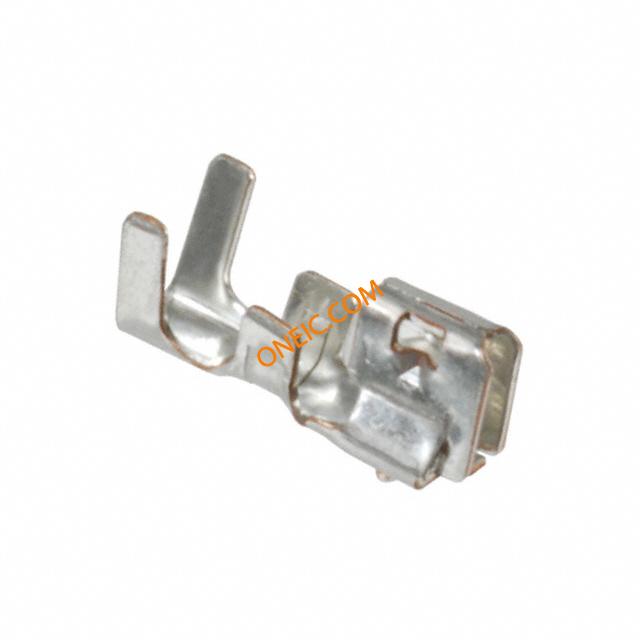

| 适用产品/相关产品 | 0502128100 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0355071900
molex
Conn Housing F 19 POS 2mm Crimp ST Bag NEW 2.0 W/B CONN.HOUSING

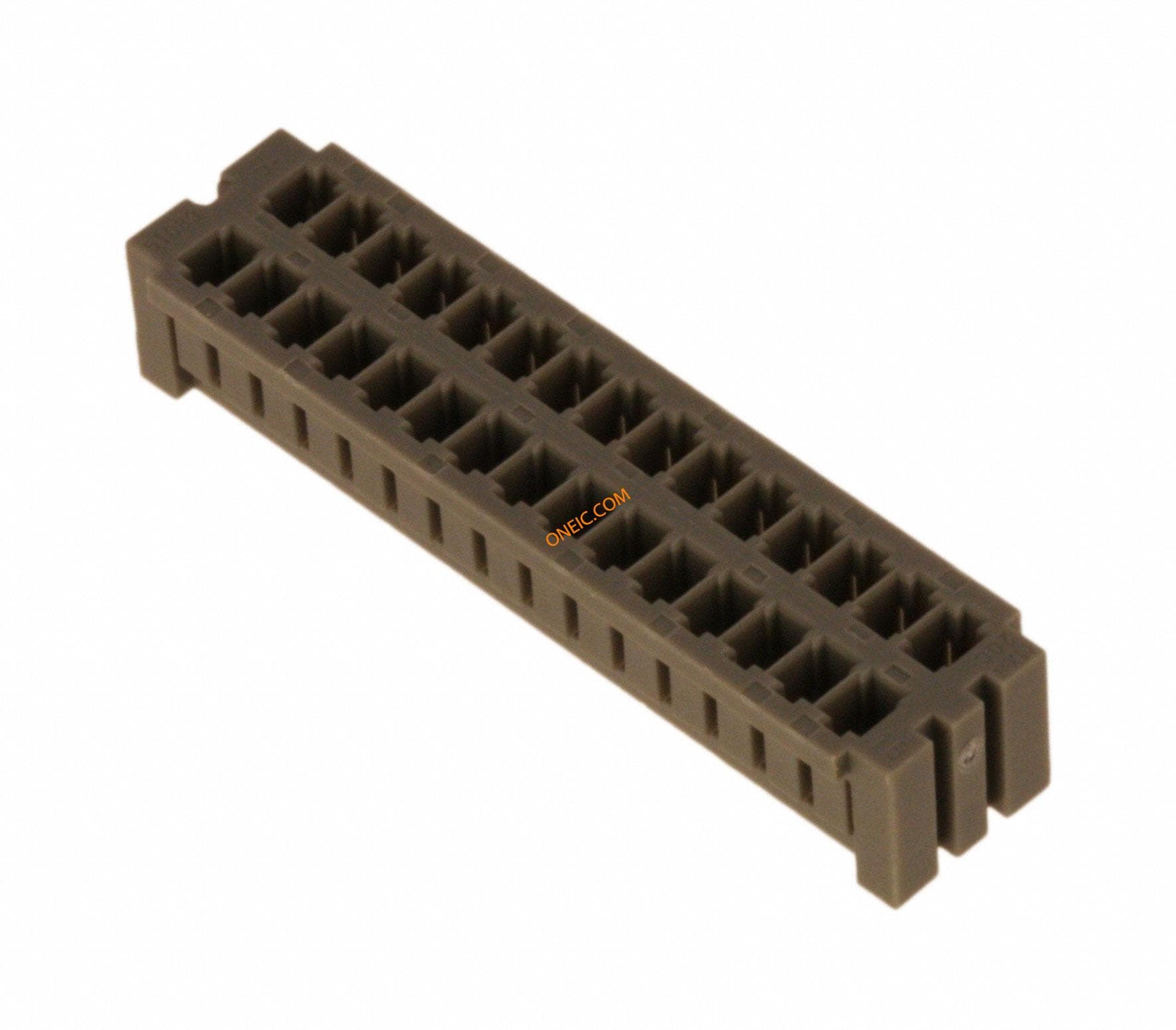

0510893005
molex
Conn Housing RCP 30 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 30POS 2MM
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0

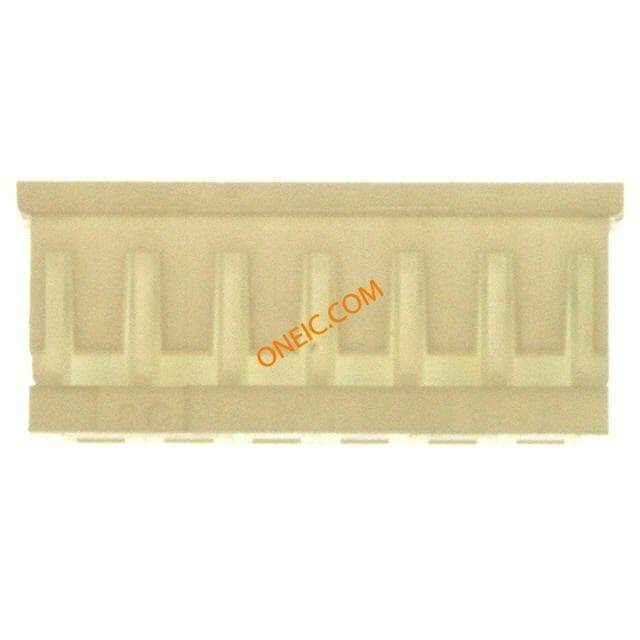

0510650600
molex
Conn Housing RCP 6 POS 2mm Crimp ST Bag CONN RCPT HOUSING 6POS 2MM NATL

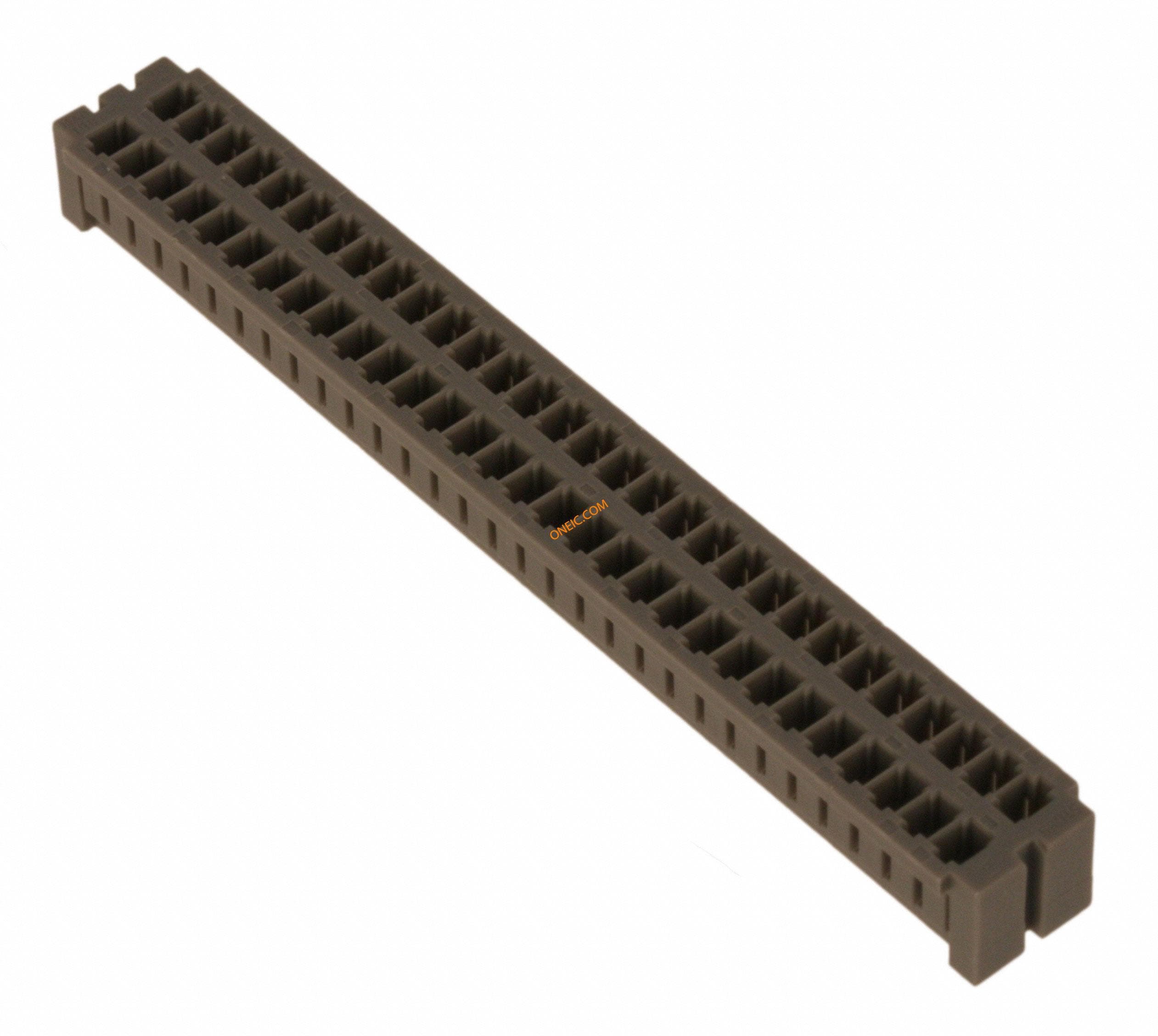

0510896005
molex
Conn Housing RCP 60 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 60POS 2MM
51065-0300
molex
Conn Housing RCP 3 POS 2mm Crimp ST Bag CONN RCPT HOUSING 3POS 2MM NATL Housing,rcp,MicroLatch,2.0mm,f/lock,3way Headers & Wire Housings 2MM W-T-B HSG 3P friction lock WIRE-BOARD CONN, RECEPTACLE, 3POS, 2MM 2.0 W TO B REC HSG Molex MICRO-LATCH 系列 2mm 节距 3 路 直 母 压接连接器外壳
51089-1205
molex
Conn Housing RCP 12 POS 2mm Crimp ST Bag CONN HOUSING CRIMP 12POS 2MM
57105-6000
molex
EXTRACTOR FOR 50212 571056000 Hand Tools EXTRACTION TOOL TOOL HAND EXTRACTION
0639105200
Molex
T2 Terminator Die T2 TERMINATOR ASSEMBLY

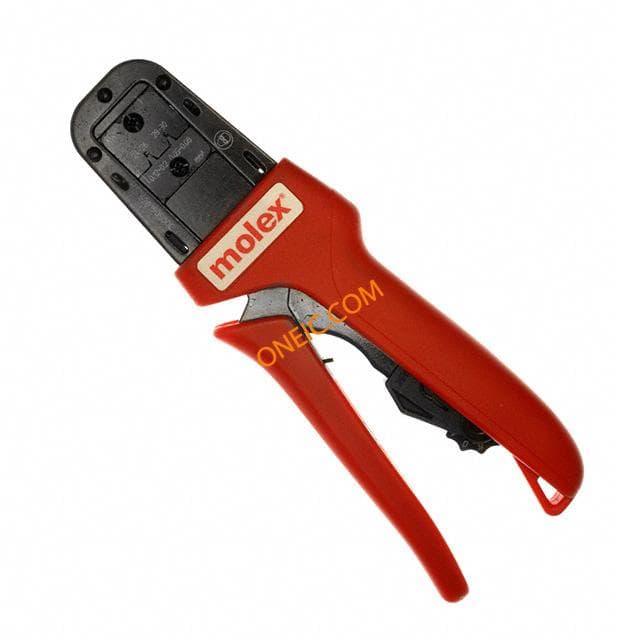

0638190500
