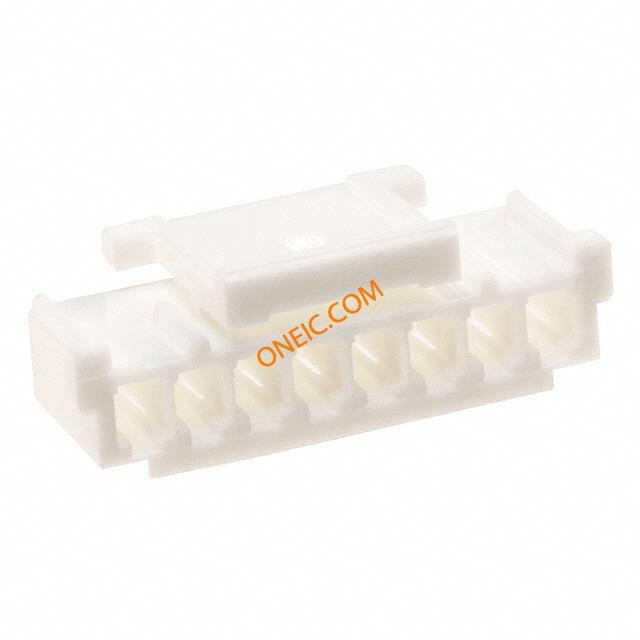

0355070800
| 制造商 | Molex, LLC |
| 描述 | CONN RECEPTACLE HOUSING 8POS 2MM Conn Housing F 8 POS 2mm Crimp ST Bag |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
电气参数
| 最大额定电流 | 2/Contact A | 最小供电电压 | 125V |
机械参数
| 颜色 | Natural | 深度 | 7.8 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 6.3 mm |
| 包装方式 | Bulk | 导线线规 | 24-30 |
| 触头类型 | Female Socket | 外壳颜色 | Natural |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 18.3 mm |
| 触点数 | 1 | 接触件端接 | Crimp |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0502128000
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Reel Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A
0502128100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG TIN Contact; female; 24÷30AWG; DuraClik, Mi II, Sherlock; crimped; 2A
0353620850
molex
Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-Hole Tube Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-Hole Bag CONN HEADER 8POS 2MM VERT TIN Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-

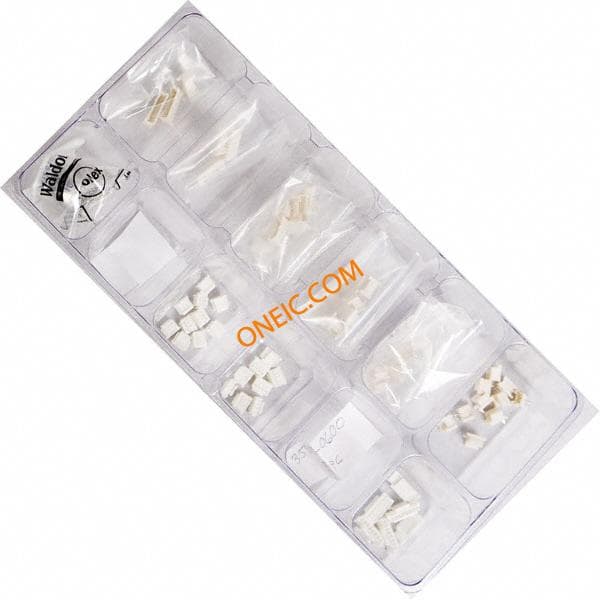

76650-0156
