点击放大查看

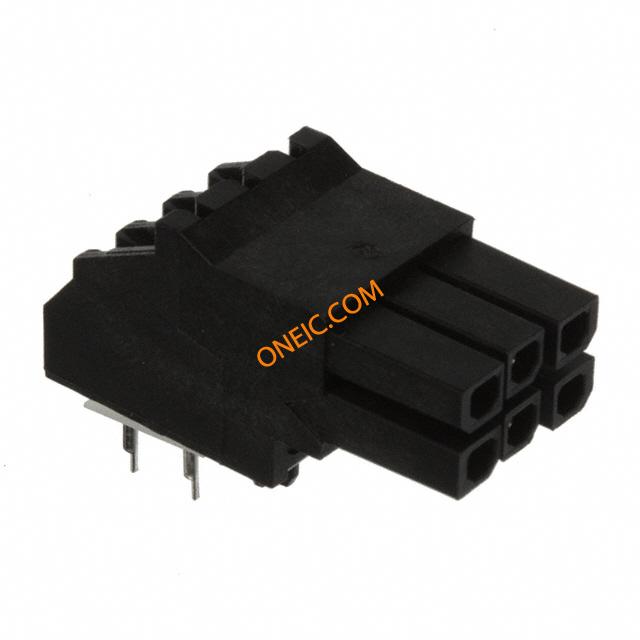

0447640601
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board RCP 6 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 6POS 3MM R/A TIN |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 100 mohm | 最大额定电流 | 5/Contact A |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 21 mm |
| 间距 | 0.118" (3.00mm) | 高度 | 10.45 mm |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 6/6 |
| 总长度 | 9.7 mm | 触点数 | 6 |
| 位数 | 6 | 接触镀层厚度 | 40µin (1.02µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
