点击放大查看
0439141103
| 制造商 | Molex, LLC |
| 描述 | Conn Housing F 10 POS 10mm Crimp ST Cable Mount Bag CONN RECEPT 10POS 10MM F/H |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 50/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Black | 深度 | 34.4 |
| 间距 | 0.394" (10.00mm) | 包装方式 | Bag |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 壳体材料 | Polyester | 总长度 | 65.7 |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | F | ||
文档与媒体
相关型号
0428150041
molex
Contact SKT Crimp ST Cable Mount Reel CONTACT, CRIMP, SOCKET 16-14AWG CONN SOCKET 14-16AWG TIN CRIMP
0428150011
Molex, LLC
. 0428150011 - Socket Contact Tin 10-12 AWG Crimp Power from Molex. from now!
0428150031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FMLE 8AWG TIN CRIMP TR CONN TERM FEMALE 8AWG TIN CRIMP
42815-0041
Molex
Headers & Wire Housings REELED TERMINALS CONN SOCKET 14-16AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Reel Mini-Fit Sr. Connectors TERMINALS 14-16awg ea Mini-Fit Sr. Connectors REELED TERMINALS 14-16 awg reel

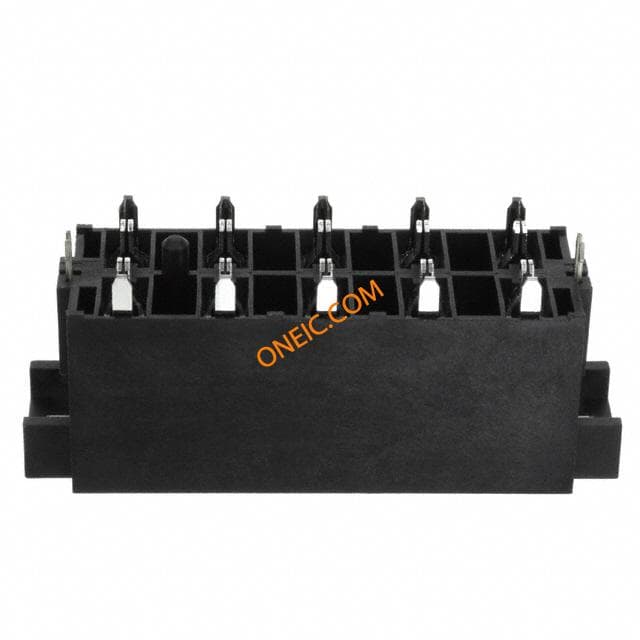

43915-1103
