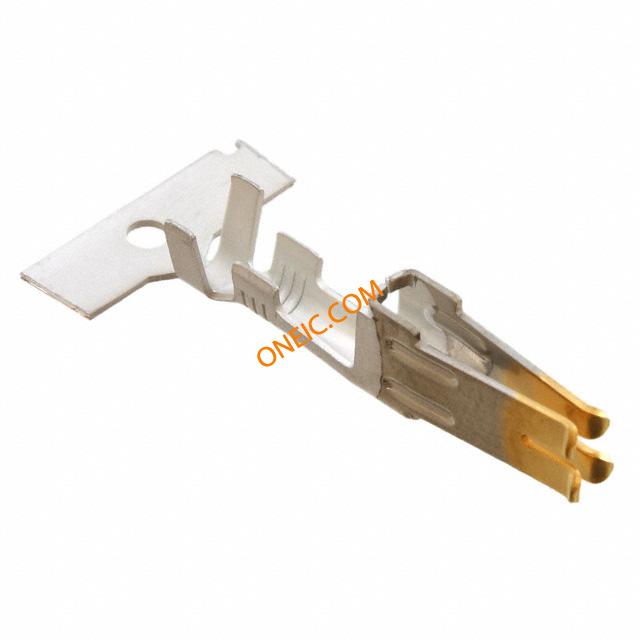

0428150042
| 制造商 | Molex, LLC |
| 描述 | . 0428150042 - Socket Contact Gold 14-16 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 其他名称 | WM6458CT | 标准包装数量 | 2,500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 1.5 mohm | 最大额定电流 | 50 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 5.94 mm | 间距 | Not Required mm |
| 高度 | 7.1 mm | 包装方式 | Reel |
| 导线线规 | 14-16 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 27.6 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Power | 连接器性别 | SKT |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0428160212
molex
Conn Housing RCP 2 POS 10mm Crimp ST Bag CONN RECEPT 2POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:2
0428160412
Molex, LLC
. 0428160412 - 4 Position Rectangular Housing Connector Receptacle Black 0.394" (10.00mm) from Molex. from now!

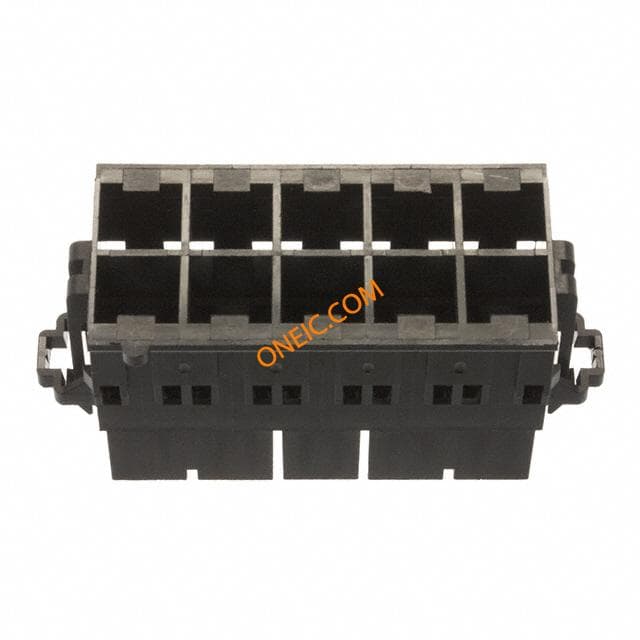

0439141103
molex
Conn Housing F 10 POS 10mm Crimp ST Cable Mount Bag CONN RECEPT 10POS 10MM F/H
0638113800
molex
Connector Accessories Hand Crimp Tool Hand Crimp Tool TOOL CRIMP 14-16AWG MINI FIT SR
0428160312
molex
Conn Housing RCP 3 POS 10mm Crimp ST Bag Conn Housing F 3 POS 10mm Crimp ST Cable Mount Bag CONN RECEPT 3POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:3
0428160512
Molex, LLC
. 0428160512 - 5 Position Rectangular Housing Connector Receptacle Black 0.394" (10.00mm) from Molex. from now!

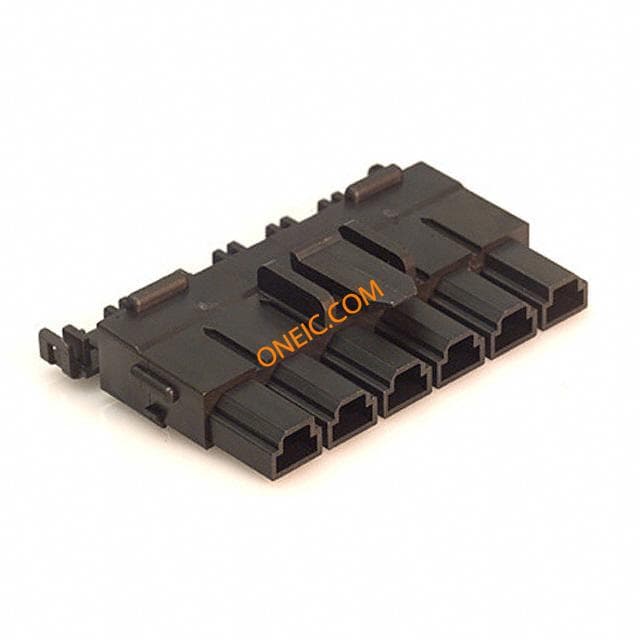

0428160612
molex
Conn Housing RCP 6 POS 10mm Crimp ST Bag CONN RECEPT 6POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:6
0638912000
molex
Connector Accessories Mini Mac Applicator Tool MINI MAC APPLICATOR

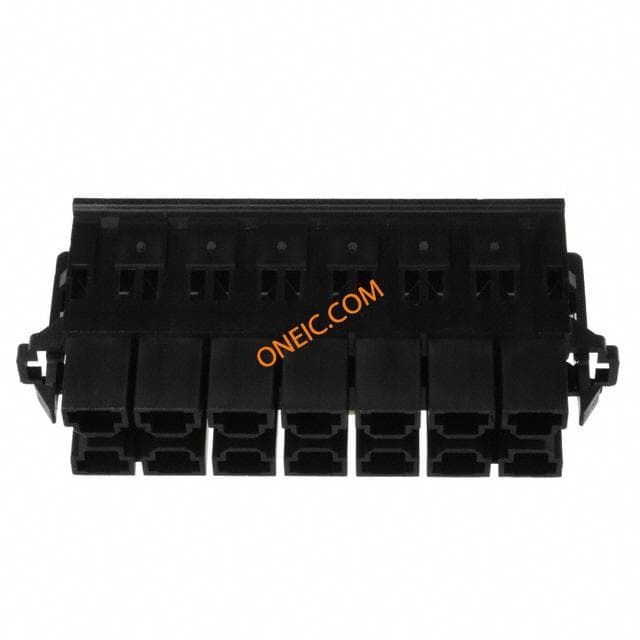

43914-1105
molex
Conn Housing RCP 14 POS 10mm Crimp ST Bag CONN RECEPT 14POS 10MM F/H Headers & Wire Housings MINI-FIT SR. RECEPT Mini-Fit Sr. Dual Row Receptacle Housing (Free Hanging) 14 Circuits

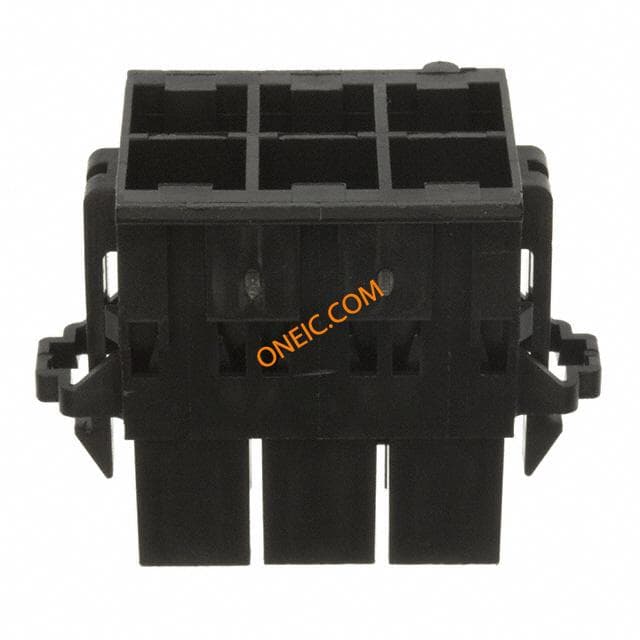

43914-1101
molex
Conn Housing RCP 6 POS 10mm Crimp ST Bag CONN RECEPT 6POS 10MM F/H Headers & Wire Housings 10.0MM 6P RECPT DUAL ROW PLUG AND SOCKET CONNECTOR HOUSING Mini-Fit Sr. Dual Row Receptacle Housing (Free Hanging) 6 Circuits

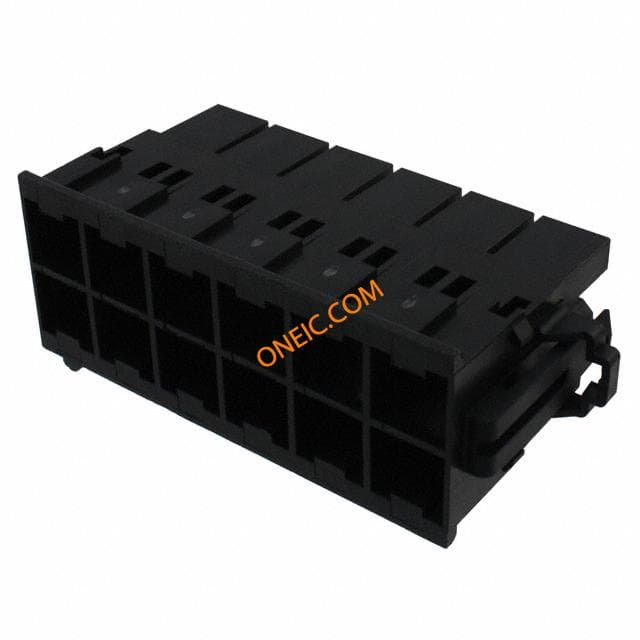

43914-1104
Molex Connector Corporation
CONN RECEPT 12POS 10MM VERT CONN RECEPT 12POS 10MM F/H Headers & Wire Housings MINI. SR. D/R RECEP 12 CKT Conn Housing RCP 12 POS 10mm Crimp ST Bag Mini-Fit Sr. Dual Row Receptacle Housing (Free Hanging) 12 Circuits

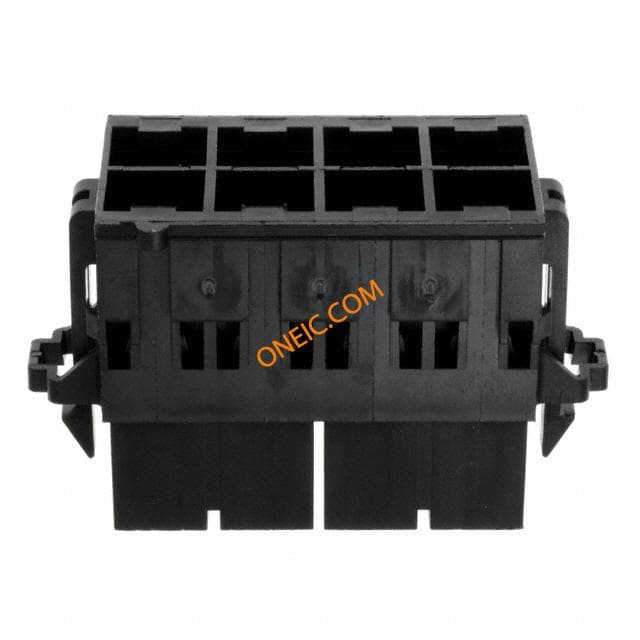

43914-1102
