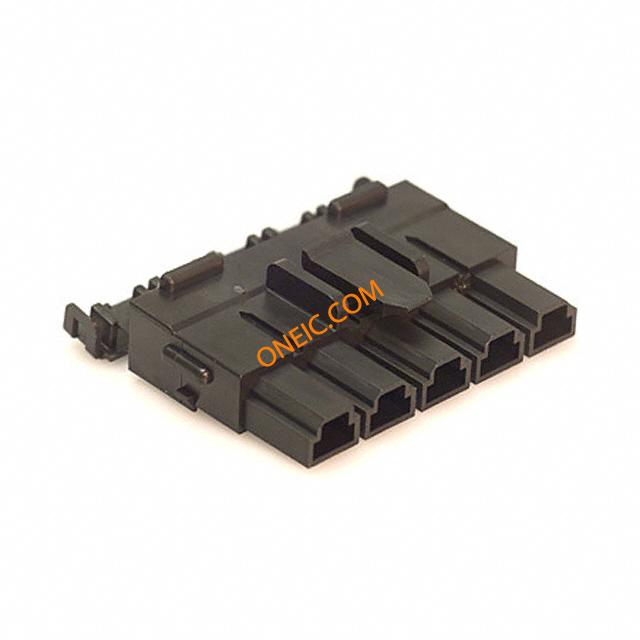

0428160512
| 制造商 | Molex, LLC |
| 描述 | . 0428160512 - 5 Position Rectangular Housing Connector Receptacle Black 0.394" (10.00mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 50/Contact |
| 最小输入电压 | 600V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 34.4 |
| 间距 | 10 mm | 高度 | 14.8 |
| 重量 | 0.01 kg | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 10mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | for cable | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 53.5 |
| 包装数量 | 2 | 连接器 - 电缆 | plug |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| SPG | 2 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | Mini-Fit Sr. | 单元数量 | 1 |
环境参数
| 工作温度 | -40...105°C | ||
文档与媒体
相关型号

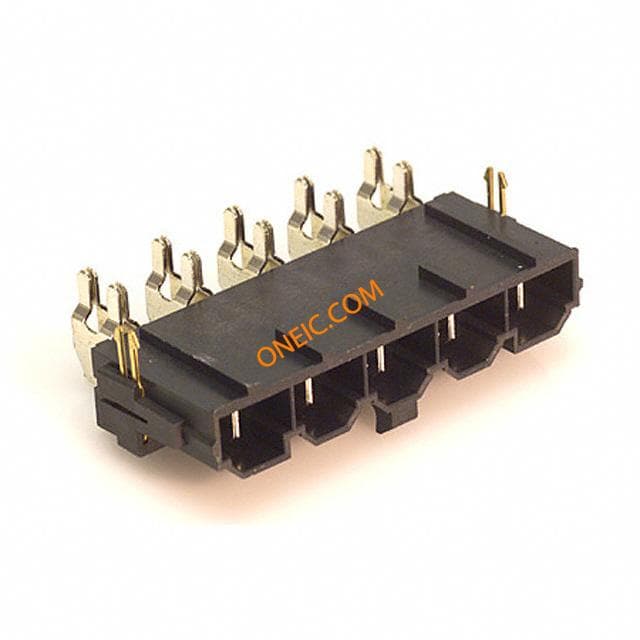

0428205212
molex
Conn Wire to Board HDR 5 POS 10mm Solder RA Thru-Hole Tray Conn Wire to Board HDR 5 POS 10mm Solder RA Thru-Hole Tube CONN HEADER 5POS 10MM R/A TIN
0428150041
molex
Contact SKT Crimp ST Cable Mount Reel CONTACT, CRIMP, SOCKET 16-14AWG CONN SOCKET 14-16AWG TIN CRIMP
0428150011
Molex, LLC
. 0428150011 - Socket Contact Tin 10-12 AWG Crimp Power from Molex. from now!

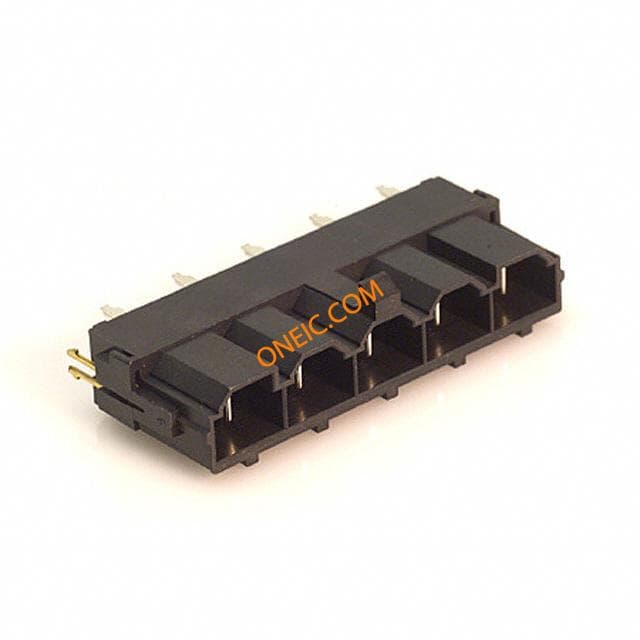

0428195212
