点击放大查看

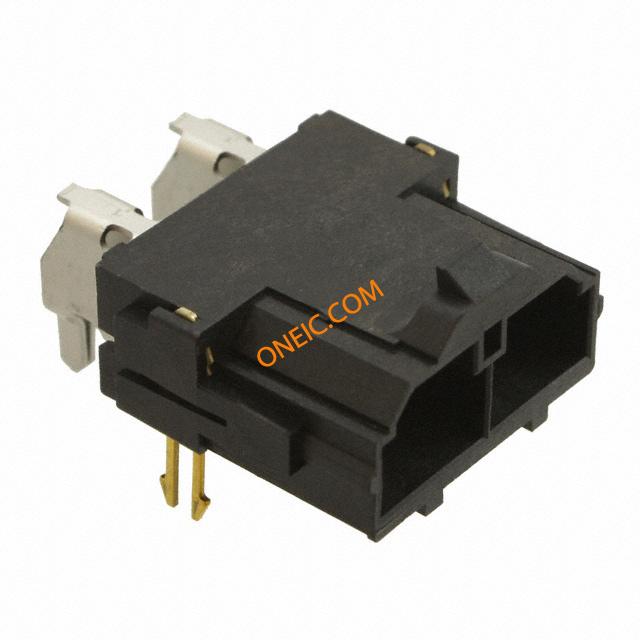

0428202213
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 2 POS 10mm Solder RA Thru-Hole Tube CONN HEADER 2POS 10MM R/A GOLD |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 1.5 | 最大额定电流 | 48/Contact |
| 最小输入电压 | 600V | ||
机械参数
| 颜色 | Black | 深度 | 28.6 |
| 间距 | 0.394" (10.00mm) | 高度 | 14.1 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Locking Ramp |
| 排数 | 1 | 触头材料 | Brass Alloy |
| 壳体材料 | Nylon 4/6 | 总长度 | 23.82 |
| 触点数 | 2 | 位数 | 2 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Lock | 加载位置数 | All |
相关型号
0428160212
molex
Conn Housing RCP 2 POS 10mm Crimp ST Bag CONN RECEPT 2POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:2

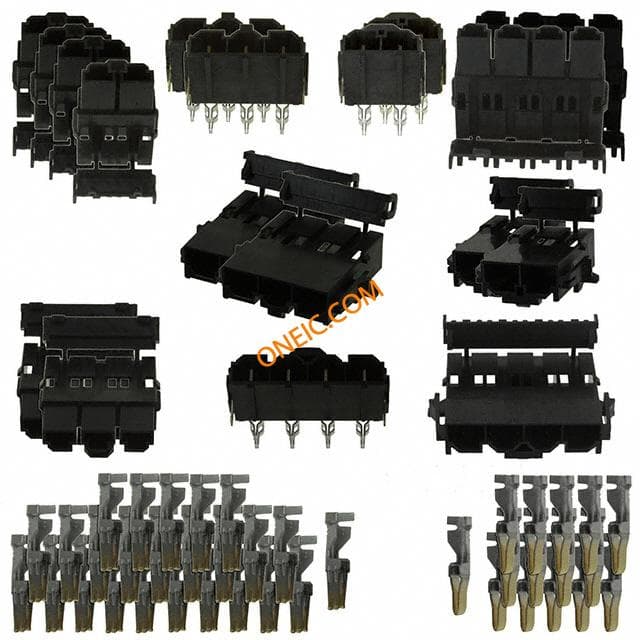

76650-0220
