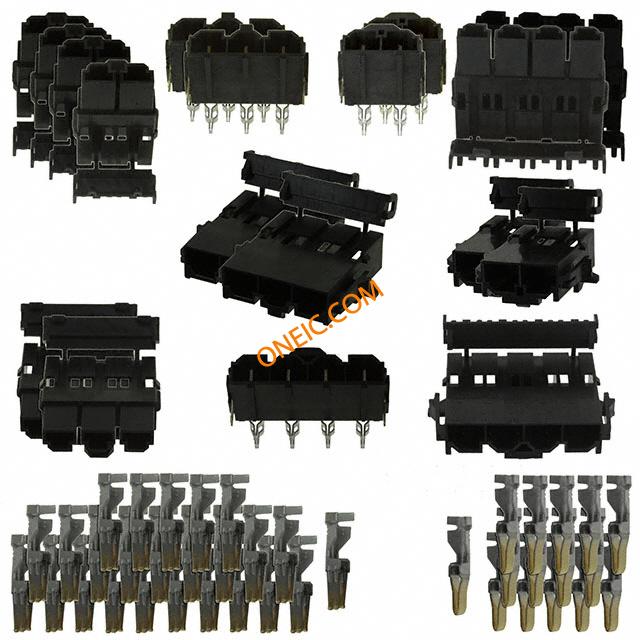

76650-0220
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 2,3,4POS 23-33A THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER 1MM PITCH 600V 12-10 WIRE SIZE KIT MINI-FIT SR WTW WTB 10MM Headers & Wire Housings MINI-FIT SR GOLD KIT COMPONENT KITS, WIRE TO BOARD AND WIRE TO WIRE KIT 2,3,4POS 23-33A THROUGH HOLE MOUNTING PLUGS,RECEPTACLE,RIGHT ANGLE HEADER 1MM PITCH ... Kit Description:Gold Right Angle Header, Plug and ReceptacleKit Category:Wire to Wire and Wire to BoardSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:60 MINI-FIT SR. PWR CONNECTOR KIT GOLD RT ANGLE HEADER, PLUG & RECEPT |
| 分类 |
商业参数
| 商标名 | Mini-Fit Jr. | 标准包装规格 | 1 |
| 零件号别名 | 0766500220 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电压 | 600 V | 额定电压 | 600 V |
| 最大额定电流 | 23 A to 33 A | ||
机械参数
| 间距 | 10 mm | 包装方式 | Plastic Box |
| 导线线规 | 12-10 | 安装类型 | Right |
| 连接器类型 | Plugs and Receptacles | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male), Socket (Female) | ||
产品信息
| 系列 | 76650 | 值 | 60 pcs - Assorted 2 ~ 4 Circuit Header, Housing, 12 ~ 10 AWG Crimp Terminals |
| 套件类型 | Rectangular - Contact, Header, Housing | 制造商全称 | 76650 |
| 产品子类型 | Connector Kits | 配置 | Wire-to-Board, Wire-to-Wire |
| 电路数 | 2, 3, 4 | ||
