点击放大查看

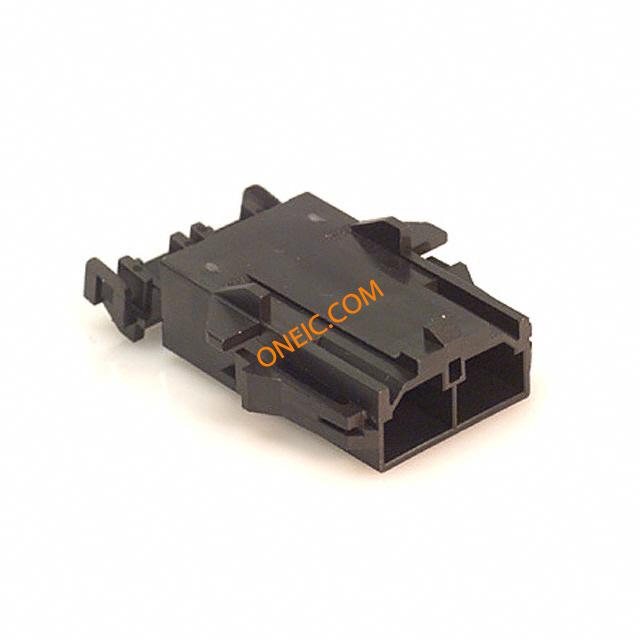

0428180212
| 制造商 | Molex, LLC |
| 描述 | Conn Housing PL 2 POS 10mm Crimp ST Panel Mount Bag CONN PLUG 2POS PANEL MOUNT Connector: wire-board; Series: Mini-Fit Sr; plug; male; PIN:2; 10mm |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 50/Contact A |
| 最小输入电压 | 600V | 最小供电电压 | 600V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 34.6 mm |
| 间距 | 10 mm | 高度 | 13.8 mm |
| 重量 | 5.38 g | 包装方式 | Bag |
| 触头类型 | Male Pin | 柱间距 | 10mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | for cable | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 31.3 mm |
| 包装数量 | 75 | 连接器 - 电缆 | plug |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| SPG | 75 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 适配器系列 | Mini-Fit Sr. | 单元数量 | 1 |
| 行业别名 | 42818-0212, 428180212 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0428160212
molex
Conn Housing RCP 2 POS 10mm Crimp ST Bag CONN RECEPT 2POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:2
0428170012
Molex, LLC
. 0428170012 - Pin Contact Gold 10-12 AWG Crimp Power from Molex. from now!
0428170031
Molex, LLC
. 0428170031 - Pin Contact Tin 8 AWG Crimp Power from Molex. from now!
0428170011
Molex, LLC
. 0428170011 - Pin Contact Tin 10-12 AWG Crimp Power from Molex. from now!
0428170142
molex
Contact PIN Crimp ST Cable Mount Reel MINIFIT SR. MALE EXTND TERM
42817-0042
molex
Contact PIN Crimp ST Cable Mount Reel CONN PINS 14-16AWG GLD CRIMP Headers & Wire Housings MINIFITSR M 14-16AWG Reel of 2500 Crimp pin Male 16...14 AWG, 42817-0041-L, Molex
42817-0031
Molex
Headers & Wire Housings PIN 8 12+12 AWG Reel of 2500 CONN TERM MALE 8AWG TIN CRIMP Mini-Fit Sr. Terminal, Male, 8 Awg, TinPlated

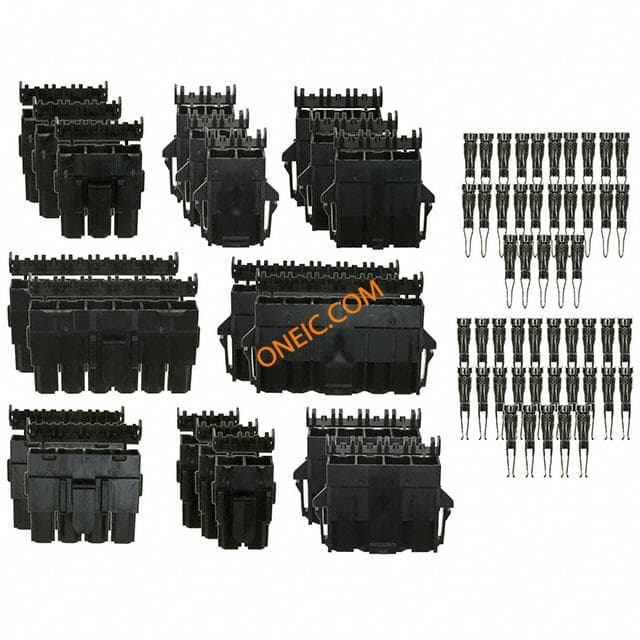

76650-0002
