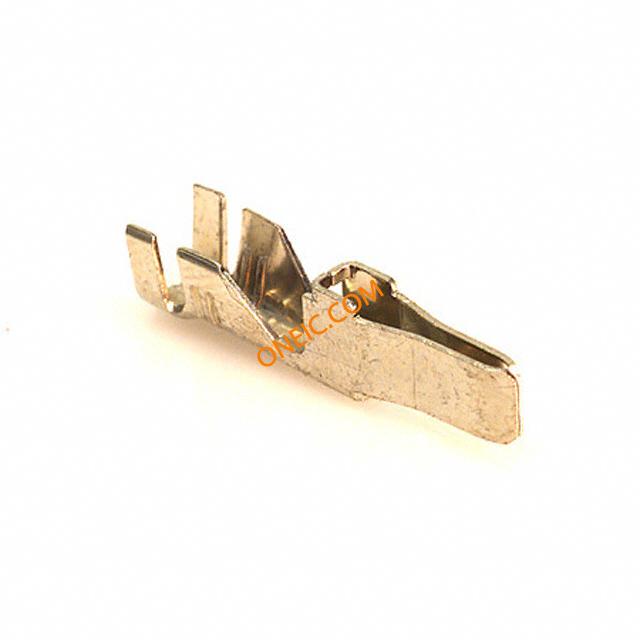

点击放大查看
0428170011
| 制造商 | |
| 描述 | 0428170011 - Pin Contact Tin 10-12 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 36 Days | 其他名称 | WM6459CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 1.5 | 最大额定电流 | 50A |
机械参数
| 深度 | 5.9 | 高度 | 6.6 |
| 重量 | 0.02 kg | 包装方式 | Reel |
| 导线线规 | 10-12 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Cable Mount | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 冷却的封装 | 1 | 触头材料 | Copper Alloy |
| 总长度 | 27.6 | 包装数量 | 10pcs. |
| 连接器 - 电缆 | contact | 接触件端接 | Crimp |
| 接触镀层厚度 | 100µin (2.54µm) | 触点材料 - 镀层 | tinned |
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 适配器系列 | Mini-Fit Sr. | 单元数量 | 1 |
| 行业别名 | 42817-0011, 428170011 | 工具类型/特性 | MX-63811-1600 |
环境参数
| 工作温度 | 105 | ||
