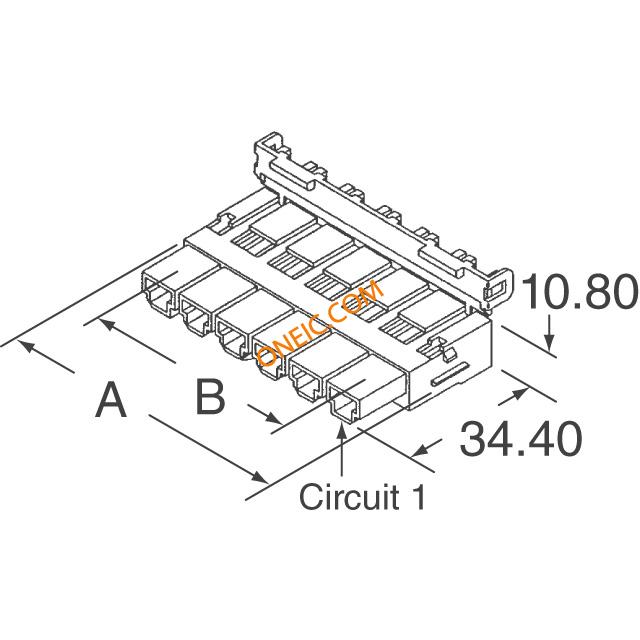

点击放大查看

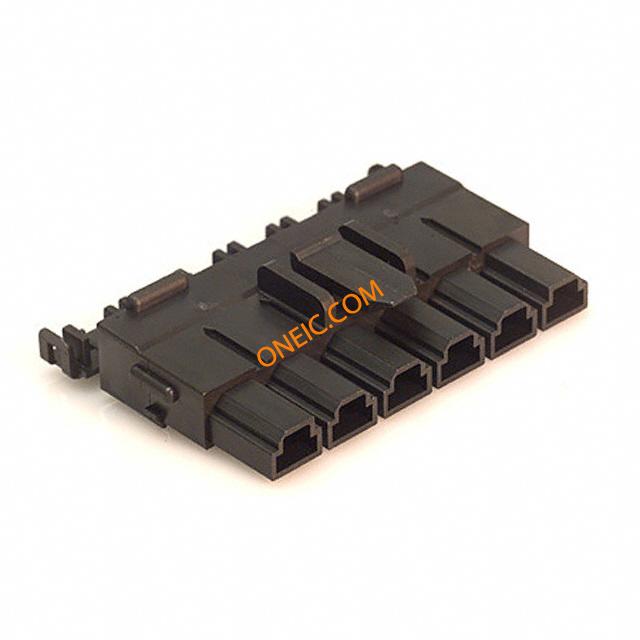

0428160612
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 6 POS 10mm Crimp ST Bag CONN RECEPT 6POS F/H SINGLE Connector: wire-board; Series: Mini-Fit Sr; plug; female; PIN:6 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 50/Contact |
| 最小输入电压 | 600V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 34.4 |
| 间距 | 0.394" (10.00mm) | 高度 | 14.8 |
| 重量 | 6.09 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 10mm |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | for cable | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 63.5 |
| 包装数量 | 350 | 连接器 - 电缆 | plug |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| SPG | 350 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | Mini-Fit Sr. | 单元数量 | 1 |
环境参数
| 工作温度 | -40...105°C | ||
文档与媒体
相关型号

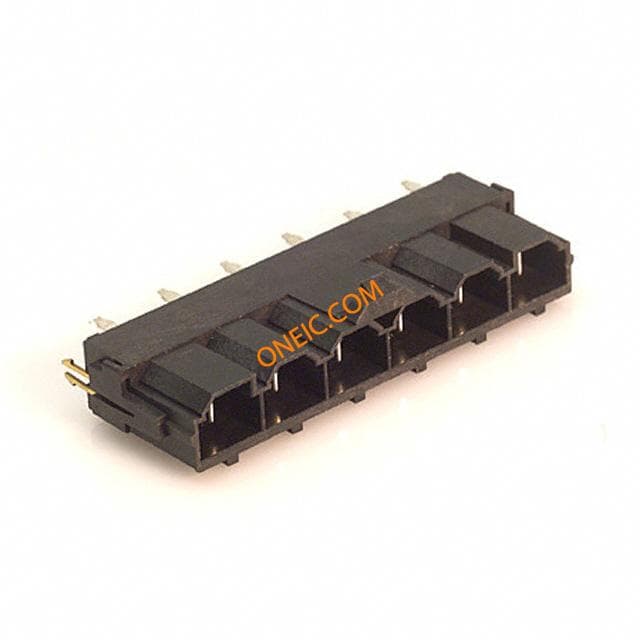

0428196212
molex
Conn Wire to Board HDR 6 POS 10mm Solder ST Thru-Hole Tray CONN HEADER 6POS 10MM VERT TIN
0428150041
molex
Contact SKT Crimp ST Cable Mount Reel CONTACT, CRIMP, SOCKET 16-14AWG CONN SOCKET 14-16AWG TIN CRIMP
0428150011
Molex, LLC
. 0428150011 - Socket Contact Tin 10-12 AWG Crimp Power from Molex. from now!
0428150031
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FMLE 8AWG TIN CRIMP TR CONN TERM FEMALE 8AWG TIN CRIMP
42815-0041
Molex
Headers & Wire Housings REELED TERMINALS CONN SOCKET 14-16AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Reel Mini-Fit Sr. Connectors TERMINALS 14-16awg ea Mini-Fit Sr. Connectors REELED TERMINALS 14-16 awg reel
76650-0002
molex
Wire To Wire Kit For Plugs, Receptacles Kit KIT CONN MINI-FIT SR. SERIES Heavy Duty Power Connectors MINIFIT SR. KIT Kit Description:Fully Polarized Single Row Plug and ReceptacleKit Category:Wire to WireSolution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:70 MINI-FIT SR. PWR CONNECTOR KIT FULLY POLARIZED SINGLE ROW PLUG & RECEPT
0428150032
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FML 8AWG GOLD CRIMP TR CONN TERM FEMALE 8AWG GOLD CRIMP
0428180612
Molex
Conn Housing PL 6 POS 10mm Crimp ST Panel Mount Bag CONN PLUG 6POS PANEL MOUNT Connector: wire-board; Series: Mini-Fit Sr; plug; male; PIN:6; 10mm
0428150042
Molex, LLC
. 0428150042 - Socket Contact Gold 14-16 AWG Crimp Power from Molex. from now!
0428150012
Molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 10-12AWG GOLD CONN TERM FMALE 10-12AWG GOLD TR Contact; female; 10÷12AWG; Mini-Fit Sr; gold plated; crimped; 50A

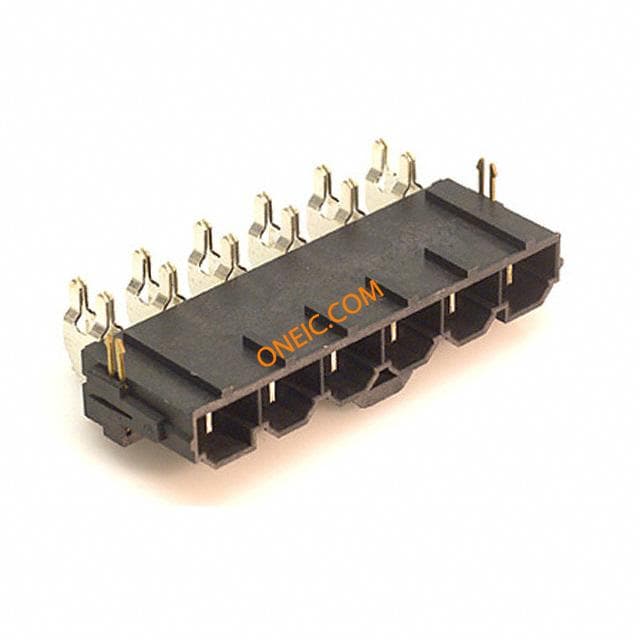

42820-6212
