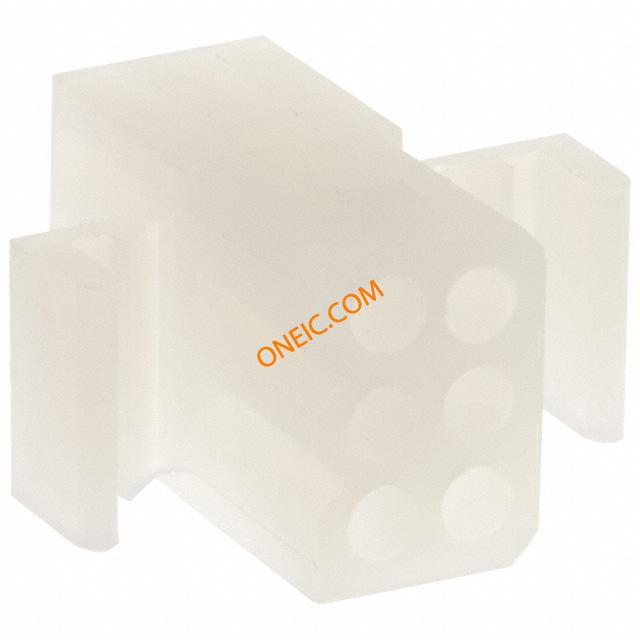

03-06-1061
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 6 POS 3.68mm Crimp ST Bag CONN RECEPT 6POS .062 PANEL MNT Molex 3.68mm 6 Way 3 Row Straight Female Multiway Connector Pin & Socket Connectors 6 CIRCUIT RECEPTACLE TERMINAL HOUSE; MINI; RECEPT W/MNT EAR & DTENT WNDW; 6 CIRC Molex STANDARD .062" 系列 3 行 3.68mm 节距 6 路 直 母 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Standard .062 in | 零件号别名 | 0003061061 1625-6R 3061061 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构标志 | CSA, UL, TUV |
| 材料阻燃等级 | UL94V-2 | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5A |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Natural | 深度 | 19.8mm |
| 间距 | 0.145" (3.68mm) | 宽度 | 12.5mm |
| 长度 | 8.7mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.145" (3.68mm) |
| 端接方式 | Crimp | 触点形式 | Male or Female |
| 触头类型 | Male or Female | 引脚间距 | 0.145" (3.68mm) |
| 安装类型 | Panel Mount, Snap-In | 行程角度 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 3 |
| 壳体材料 | Nylon | 总长度 | 0.78 " |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 安装孔直径 | 0.505×0.552 " |
产品信息
| 备注 | Contacts Not Provided | 类型 | Panel Socket |
| 连接器性别 | Female | 系列 | 1625 |
| CAD图纸 | 3D CAD Model | 制造商全称 | 1625 Series |
| 产品子类型 | Receptacle Housings | 基础产品编号 | 1625 |
| 输出配置 | Panel Mount, Snap-In | 适用产品/相关产品 | 1778 插入式 PC 尾线接线端子；1779 包容式 PC 尾线接线端子；包容式压接接线端子 1561、4559、4529、2190、2189、1787、1855；插入式压接端子 1560、1786、1854 |
环境参数
| 工作温度 | -40 to +105 °C | ||
