点击放大查看

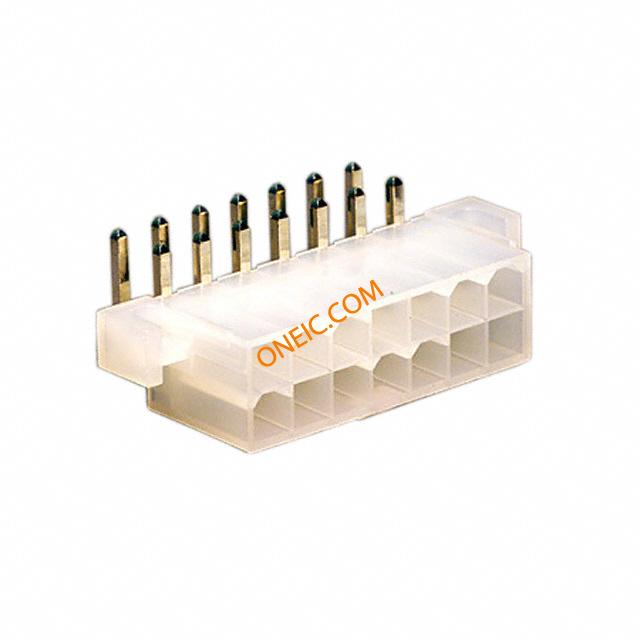

0039291148
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 14 POS 4.2mm Solder RA Thru-Hole 14 Terminal 1 Port Bag CONN HEADER 14POS 4.2MM R/A TIN |
| 分类 |
商业参数
| 交货时间 | 58 Days | 子类别 | Connector Power |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 6/Contact A |
| 最小输入电压 | 600V | 最小供电电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 19.4 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 11.4 mm |
| 直径 | Not Required mm | 包装方式 | Bag |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon 6/6 |
| 总长度 | 40.6 mm | 触点数 | 14 |
| 位数 | 14 | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 端口数 | 1 | 行业别名 | 39-29-1148, 39291148 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
文档与媒体
相关型号
0039012140
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL CONNECTOR HOUSING, RECEPTACLE, 14POS, 2ROW, 4.2MM
0039012145
molex
Conn Housing RCP 14 POS 4.2mm Crimp ST Bag CONN RECEPT 14POS DUAL Conn Housing F 14 POS 4.2mm Crimp ST Cable Mount Bag

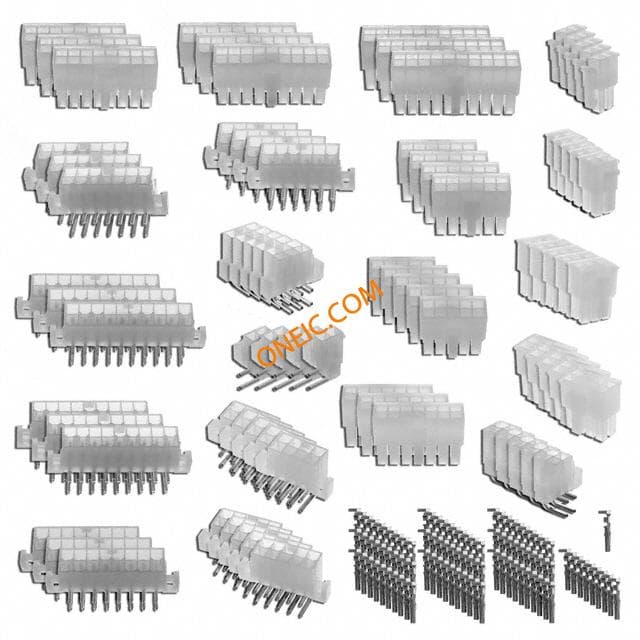

76650-0016
