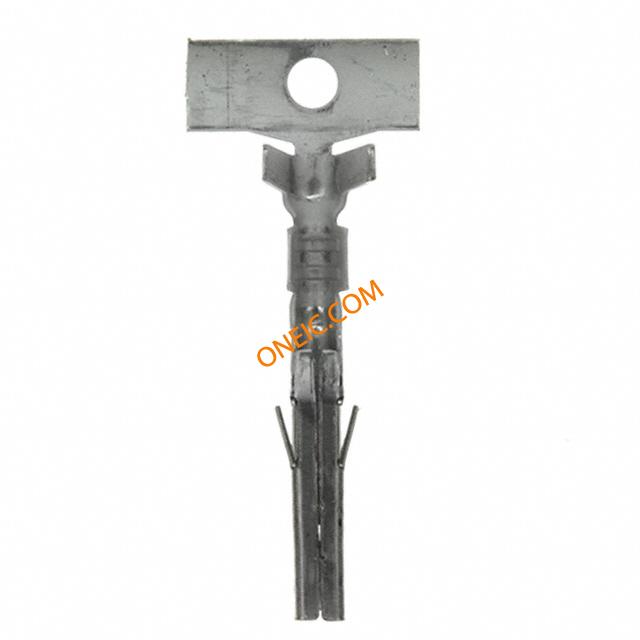

0039000181

制造商	Molex, LLC
描述	Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-24AWG GOLD
分类	连接器解决方案接触件接触件（通用）

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	其他名称	WM18518CT
子类别	Connector Contact	标准包装数量	Tape & Reel

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻

最大额定电流

机械参数

深度	3.6	高度	4.5
包装方式	Reel	导线线规	18-24 AWG
屏蔽类型	No	端接方式	Crimp
触头类型	Signal	安装类型	Cable Mount
插针或插孔	Socket	连接器类型	Connector Headers and PCB Receptacles
接触镀层	Gold Over Nickel	触头材料	Phosphor Bronze
总长度	14.7	接触件端接	Crimp
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Power	连接器性别	SKT
行业别名	39-00-0181, 39000181	适用产品/相关产品	00390001530039000182

环境参数

工作温度

105

文档与媒体

PDF 文档

0039000181_CRIMP_TERMINALS.pdf

PDF 文档

39-00-0yyy
