点击放大查看

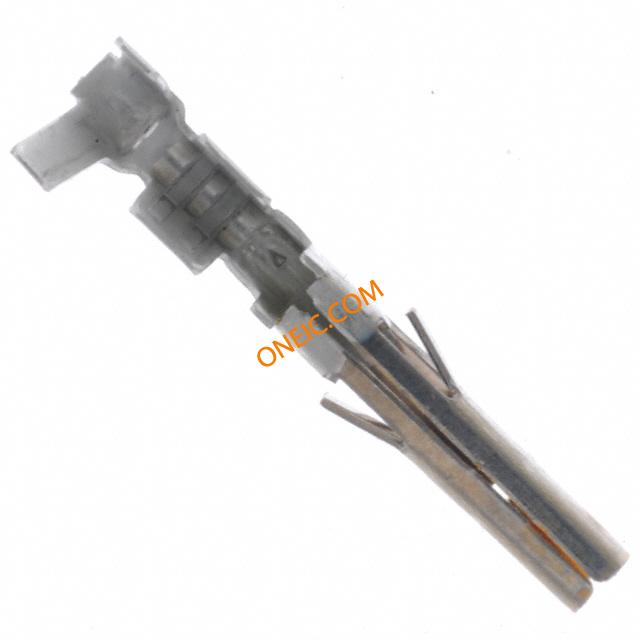

0039000090
| 制造商 | Molex, LLC |
| 描述 | CONN TERM FEMALE 16AWG 30GOLD Contact SKT Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 68 Days | 子类别 | Connector Contact |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 10 mohm | 最小供电电压 | 300VDC/250VAC |
机械参数
| 深度 | 3.6 mm | 间距 | Not Required mm |
| 高度 | 4.5 mm | 包装方式 | Bag |
| 导线线规 | 16 AWG | 端接方式 | Crimp |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 接触镀层 | Gold |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Not Required | 总长度 | 14.7 mm |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | RCP |
| 行业别名 | 39-00-0090, 39000090 | 适用产品/相关产品 | 0039000089 |
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
