点击放大查看

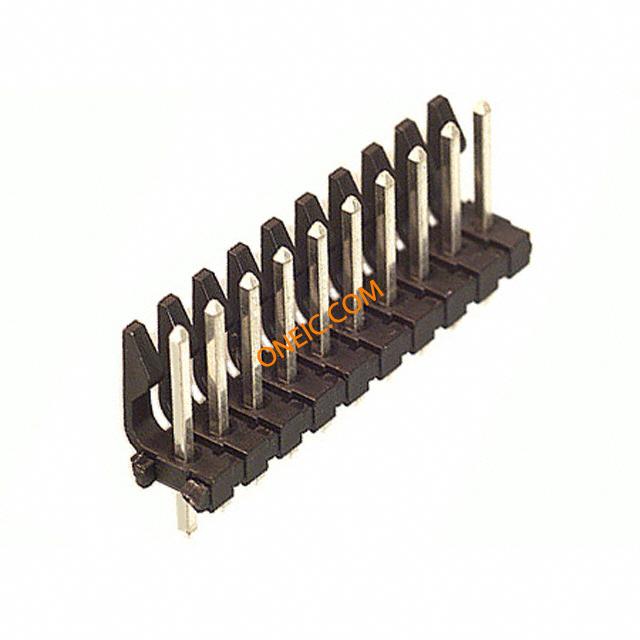

0026481105
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 10 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 10POS .156 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 33 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 7/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 9.02 |
| 间距 | 0.156" (3.96mm) | 高度 | 14.68 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded, Breakaway |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 39.57 |
| 触点数 | 10 | 位数 | 10 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 200µin (5.08µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 行业别名 | 26-48-1105, 26481105 | 加载位置数 | All |
相关型号
0009503101
molex
Conn Housing RCP 10 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 10POS .156 W/RAMP
0009521100
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009521101
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
0009482109
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009482105
Molex, LLC
. 0009482105 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482107
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009483105
molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 10POS .156 R/A PCB
0009482108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009521103
Molex, LLC
. 0009521103 - 10 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!

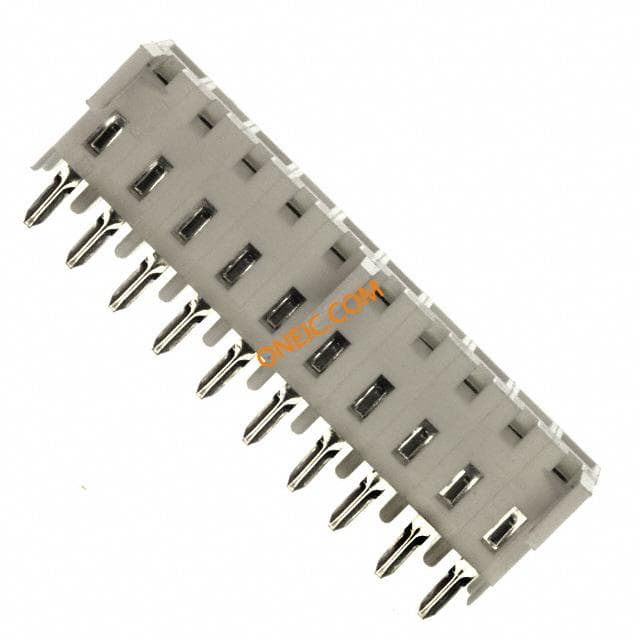

0009484108
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .156 VERT PCB
0009482102
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 10POS TIN PCB
0009523105
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB
09-62-3103
molex
KK 156 PCB ASSY TOP 10 CKT CONN RECEPT 10POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Top Entry 10 CKT Conn Socket Strip SKT 10 POS 3.96mm Solder ST Thru-Hole Tray
0009521106
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS TIN PCB

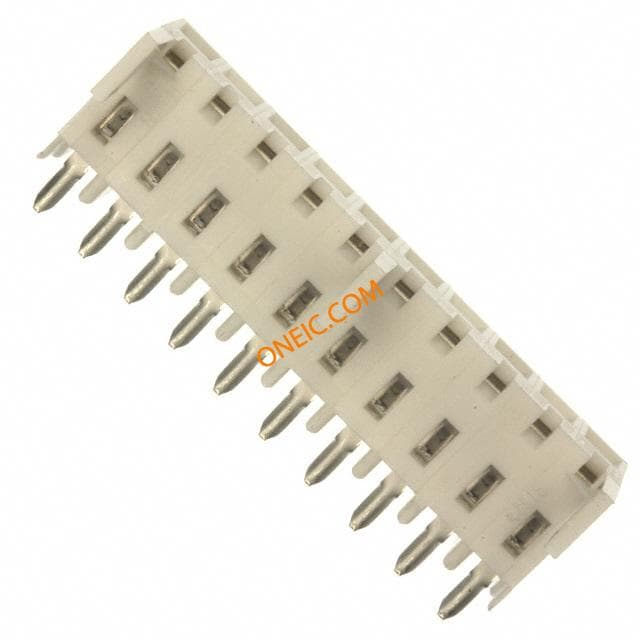

0009483106
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 10POS .156 VERT PCB
0009482103
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 10POS TIN PCB
0009485104
Molex
Conn Socket Strip RCP 10 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 10POS GOLD PCB
0009931000
Molex
Conn Housing F 10 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 10POS

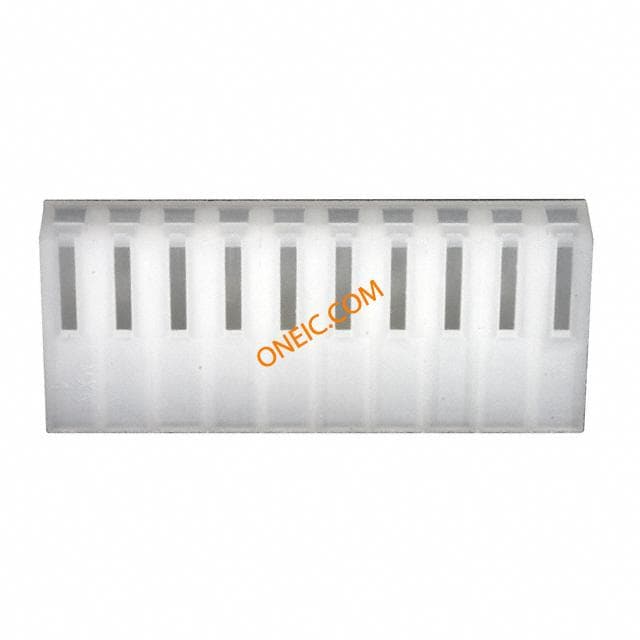

09-50-7101
