点击放大查看

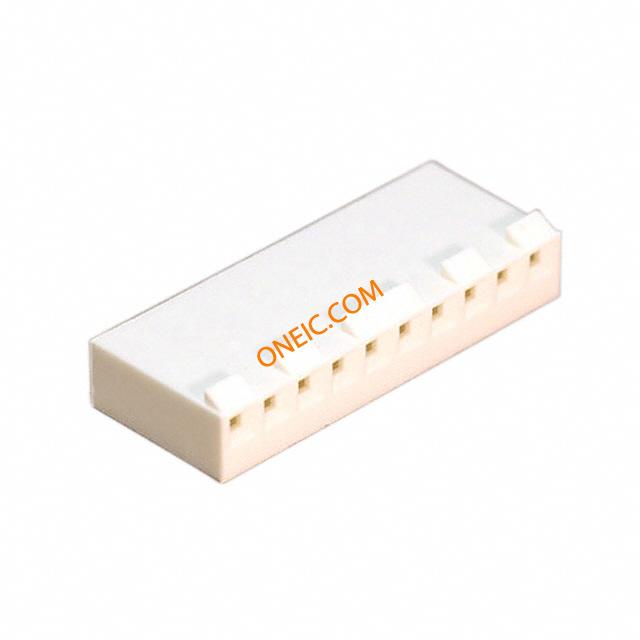

09-50-8101

制造商	Molex, LLC
描述	CONN HOUSING 10POS .156 W/RAMP Headers & Wire Housings HSG 10P W/LKG RAMP UL94V-0 Conn Housing RCP 10 POS 3.96mm Crimp ST Cable Mount Bag
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508101 41695-N-B10 9508101
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	500

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Polyester
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	10	接触件端接	Crimp
位数	10

产品信息

备注	Contacts Not Provided	系列	41695
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

09-50-8101

PDF 文档

606138.pdf

PDF 文档

009508101_sd.pdf
