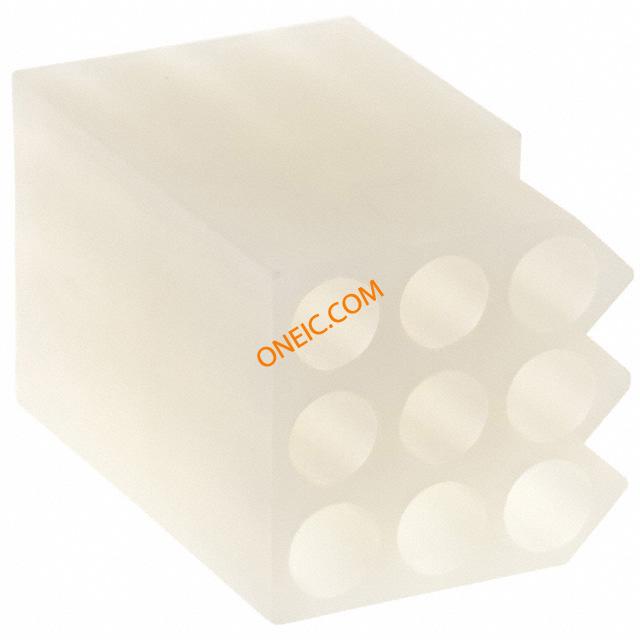

点击放大查看
0003091094
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 9 POS 5.03mm Crimp ST Bag CONN RECEPTACLE 9POS .093 |
| 分类 |
商业参数
| 交货时间 | 22 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 2,000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 11/Contact A | ||
机械参数
| 颜色 | Natural | 深度 | 26.2 mm |
| 间距 | 0.198" (5.03mm) | 高度 | 16 mm |
| 包装方式 | Bag | 方向 | Straight |
| 排间距 | 0.198" (5.03mm) | 触头类型 | Male or Female |
| 外壳颜色 | Natural | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 3 | 壳体材料 | Nylon 66 |
| 连接器颜色 | Natural | 触点数 | 9 |
| 接触件端接 | Crimp | 位数 | 9 |
| 绝缘材料 - 材质 | Nylon 66 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 03-09-1094, 03091094, 3091094 |
| 其他规格 | 3 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0003092092
molex
Conn Housing PL 9 POS 5.03mm Crimp ST Bag CONN PLUG 9POS .093
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0010181091
molex
Conn Shrouded Header HDR 9 POS 5.03mm Solder ST Thru-Hole Bag TERM BLK SKT 9POS 2.36MM
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
03-09-2091
molex
Conn Housing PL 9 POS 5.03mm Crimp ST Bag CONN PLUG 9POS .093 PANEL MOUNT Molex 5.03mm 9 Way 3 Row Straight Male Housing Receptacle Pin & Socket Connectors 9 CIRCUIT PLUG 2.36mm Diameter Standard .093" Pin and Socket Plug Housings, 9 Circuits, 3 Rows CONNECTOR HOUSING, PLUG, 9 WAY, NYLON TERMINAL HOUSE; STD; PLUG W/MNT EAR & DTENT LCK; 9 CIRCUITS Molex STANDARD .093" 系列 9路 (3行) 5.03mm节距 直 自由悬挂 外壳
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
0002098108
Molex
Contact PIN Crimp ST Cable Mount Reel TERM MALE PIN .093 14-18AWG
02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20
02-09-5106
Molex Connector Corporation
CONN TERM FEMALE 14-20AWG GOLD Crimp term 2.36mm,,fem,14-20 AWG,Au, bag Pin & Socket Connectors SOCKET 14-20AWG BULK Contact SKT Crimp ST Cable Mount Bag 093 Female Brass Term Lse 15Au 14-20 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
02-09-6123
Molex Connector Corporation
CONN TERM MALE 18-22AWG GOLD Pin & Socket Connectors PIN 18-22AWG BULK Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 22-18AWG, CRIMP

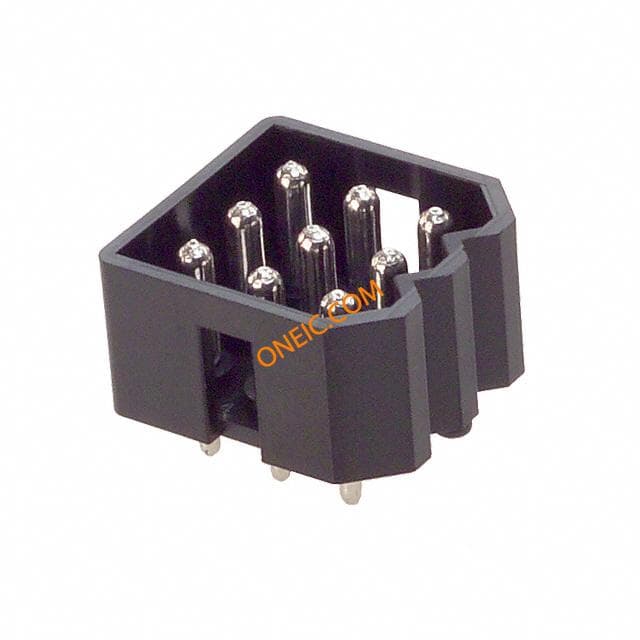

10-18-1090
