点击放大查看

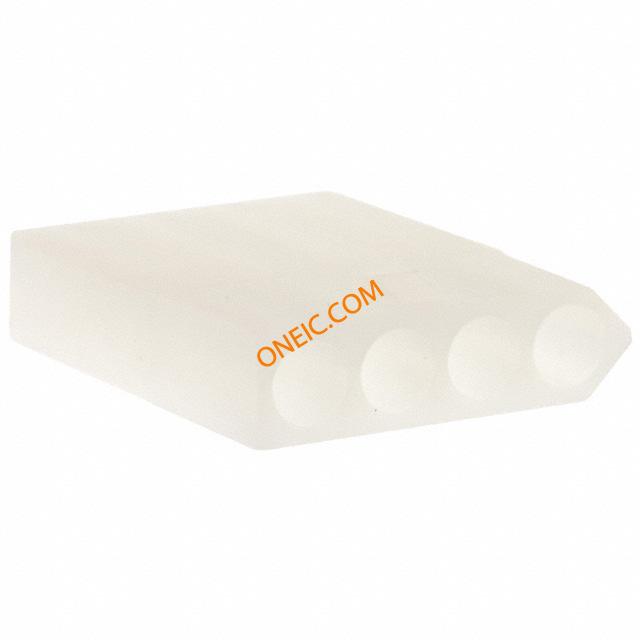

0003091042
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 4 POS 5.03mm Crimp ST Bag CONN RECEPTACLE 4POS .093 |
| 分类 |
商业参数
| 交货时间 | 43 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 11/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Natural | 深度 | 26.2 |
| 间距 | 0.198" (5.03mm) | 包装方式 | Bag |
| 触头类型 | Male or Female | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon 6/6 | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 03-09-1042, 03091042, 3091042 |
