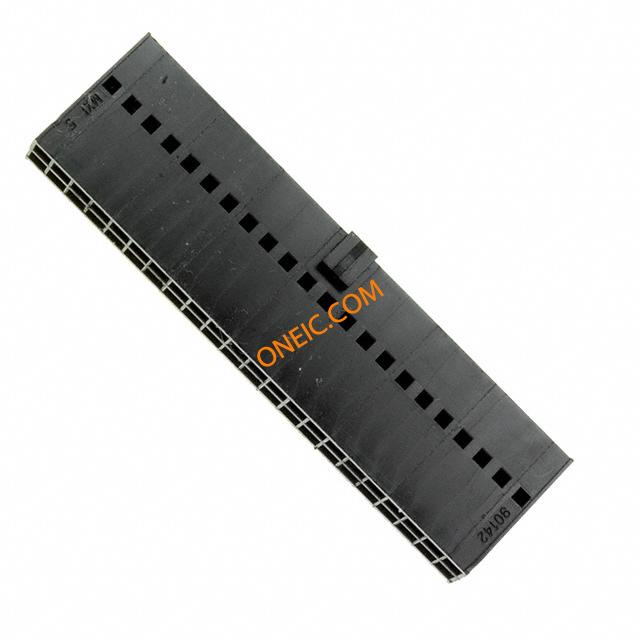

90142-0044

制造商	Molex, LLC
描述	CONN HOUSING 44POS .100" DUAL Crimp Housing 2.54mm C-Grid III,2row,44w 2.54mm Pitch C-Grid III™ Crimp Housing Dual Row, 44 Circuits Molex C-GRID III 系列 2 行 2.54mm 节距 44 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Compliant

机械参数

颜色	Black	深度	15.24mm
间距	0.100" (2.54mm)	宽度	7.72mm
长度	55.88mm	包装方式	Bulk
方向	直	排间距	0.100" (2.54mm)
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	2	壳体材料	PPO
触点数	44	接触件端接	Crimp
位数	44

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	90142	CAD图纸	3D CAD Model
基础产品编号	90142	适用产品/相关产品	C-Grid III Connector

文档与媒体

PDF 文档

90142-0044
