点击放大查看

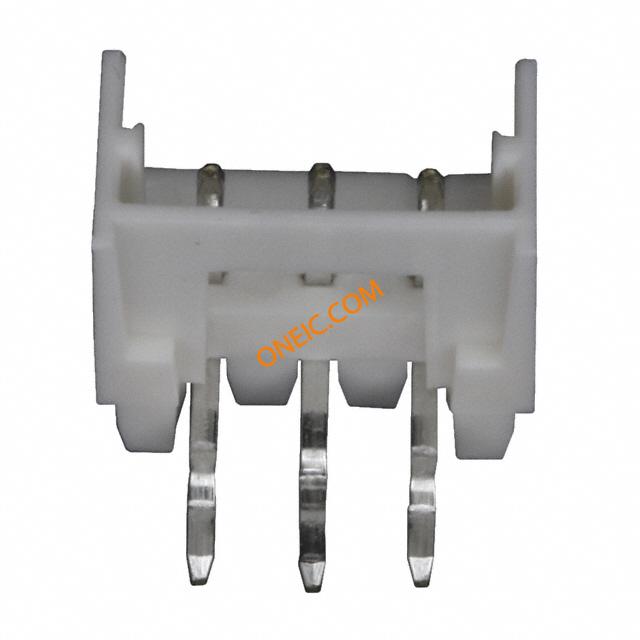

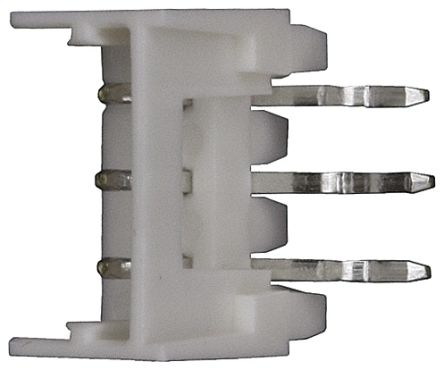

53254-0370
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 3POS 2MM RT ANG TIN Headers & Wire Housings 3CKT WTB R/A Conn Wire to Board HDR 3 POS 2mm Solder RA Thru-Hole Tray HEADER, 2MM, 3WAY CONNECTOR Molex MICRO-LATCH 系列 3路 2mm节距 (1排) 直角 PCB 针座 , 焊接端接, 2A, 通孔 |
| 分类 |
商业参数
| 商标名 | Micro-Latch | 零件号别名 | 0532540370 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - Micro-Latch 53254 Series | 额定电压 | 125 V |
| 最大额定电流 | 2 A | ||
机械参数
| 间距 | 0.079" (2.00mm) | 重量 | 0.019 |
| 包装方式 | Tray | 端接方式 | Press-Fit |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 端接样式 | Through Hole |
| 触点数 | 3 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 3 | 接触长度 - 配合 | 0.130" (3.30mm) |
产品信息
| 类型 | Shrouded | 连接器性别 | :Header |
| 系列 | 53254 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
51065-0300
molex
Conn Housing RCP 3 POS 2mm Crimp ST Bag CONN RCPT HOUSING 3POS 2MM NATL Housing,rcp,MicroLatch,2.0mm,f/lock,3way Headers & Wire Housings 2MM W-T-B HSG 3P friction lock WIRE-BOARD CONN, RECEPTACLE, 3POS, 2MM 2.0 W TO B REC HSG Molex MICRO-LATCH 系列 2mm 节距 3 路 直 母 压接连接器外壳

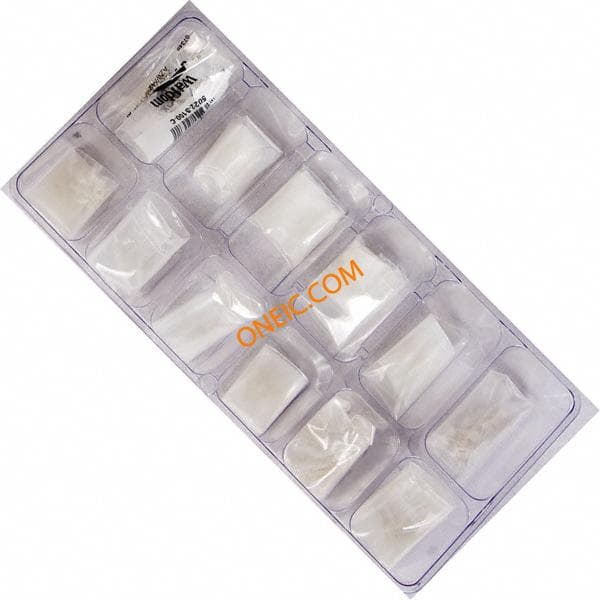

76650-0114
