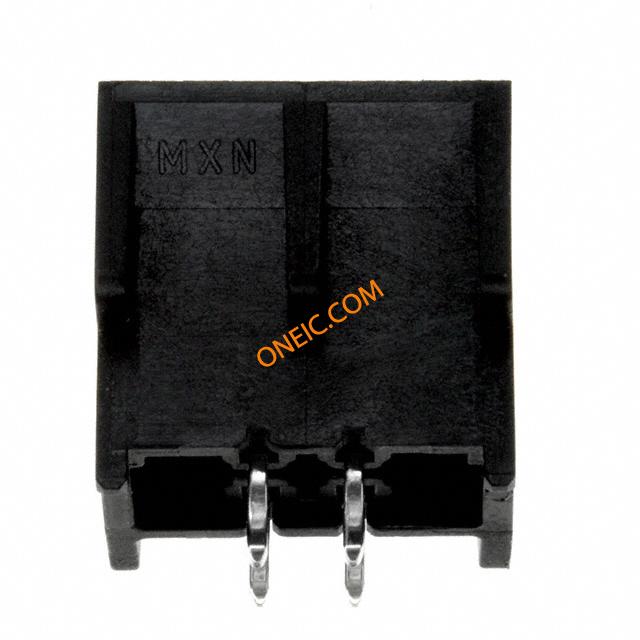

44432-0401

制造商	Molex, LLC
描述	CONN HEADER 4POS 3MM VERT TIN Headers & Wire Housings VERT RECPT 4P tin polarizing pegs Conn Wire to Board HDR 4 POS 3mm Solder ST Thru-Hole Tray
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Fit 3.0	零件号别名	0444320401
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1008

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

5 A

机械参数

颜色	Black	间距	0.118" (3.00mm)
包装方式	Tray	排间距	0.118" (3.00mm)
端接方式	Press-Fit	触头类型	Male Pin
安装类型	Through Hole	连接器类型	Header, Shrouded
接触镀层	Tin	排数	2
触头材料	Brass	壳体材料	Thermoplastic
端接样式	Through Hole	触点数	4
位数	4	接触镀层厚度	200µin (5.08µm)

产品信息

类型	Pin Header	系列	44432
产品特性	Board Guide	产品子类型	Header Assemblies
加载位置数	All
