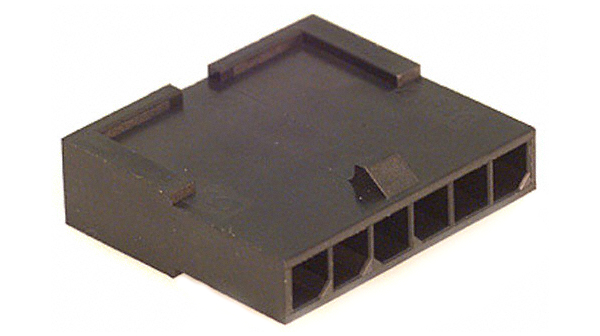

43640-0601
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 6POS 3MM SINGLE ROW Plug Housing 3.00mm single row 6w Headers & Wire Housings PLUG FREE HNG 6P SINGLE ROW Conn Housing PL 6 POS 3mm Crimp ST Panel Mount Bag PLUG, IN-LINE, FREE, 6WAY Male contact housing single row Pitch3 mm Poles 1 x 6 Micro-Fit, 43640-0601, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 6 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0436400601 43640-0601-P |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 2.5 A | 连接器类型 - 电压输入 | Male |
机械参数
| 深度 | 24.53mm | 间距 | 3mm |
| 重量 | 0.0101 | 材料（通用） | :Polyester |
| 安装类型 | Straight | 安装样式 | Panel |
| 排数 | 1 | 壳体材料 | PET |
| 触点数 | 6 | 位数 | :6 |
产品信息
| 类型 | Plug Housing | 连接器性别 | Male |
| 系列 | 43640 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | Micro-Fit 3.0 Plug | ||
文档与媒体
相关型号
43031-0010
molex
Contact M Crimp ST Cable Mount Bag Male crimp contact,26-30 awg Headers & Wire Housings MALE 26-30 AWG BULK tin Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 26AWG TO 30AWG, CRIMP CONTACT, PIN, 30-26AWG, CRIMP Micro-Fit 3.0 Crimp Terminal, Pin, w/Tin/Brass alloy plate contact, 26-30 AWG Crimp pin Male 30...26 AWG, 43031-0010, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点
43640-0601
Molex Connector Corporation
CONN PLUG 6POS 3MM SINGLE ROW Plug Housing 3.00mm single row 6w Headers & Wire Housings PLUG FREE HNG 6P SINGLE ROW Conn Housing PL 6 POS 3mm Crimp ST Panel Mount Bag PLUG, IN-LINE, FREE, 6WAY Male contact housing single row Pitch3 mm Poles 1 x 6 Micro-Fit, 43640-0601, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 6 路 直 公 面板安装 压接连接器外壳
43031-0006
Molex Connector Corporation
CONN PINS 26-30AWG 30GOLD CRIMP Crimp,male,select Au plate 26-30AWG,reel Headers & Wire Housings MF 3.0 TERM 26-30G M Reel of 12000 CONTACT, PIN, 30-26AWG, CRIMP Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀金镀镍触点
43645-0600
Molex
6 way single row receptacle,3mm pitch Headers & Wire Housings RECEPTACLE 6 POS SINGLE ROW Conn Housing RCP 6 POS 3mm Crimp ST Bag HOUSING, RECEPTACLE, 6 WAY, POLYESTER PLUG & SOCKET CONNECTOR, RCPT, 6POS, 3MM Micro-Fit 3.0 Receptacle; Single Row; 6Circuit Female contact housing single row Pitch3 mm Poles 1 x 6 Micro-Fit, 43645-0600, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 6 路 直 母 压接连接器外壳
43031-0007
Molex
Male crimp contact,20-24 awg Headers & Wire Housings MALE 20-24 AWG BULK tin Contact PIN Crimp ST Cable Mount Bag CRIMP PIN, MICROFIT, 20 - 24 AWG, PK100 Micro-Fit 3.0 Crimp Terminal, Pin, w/Tin (Sn) Plated Tin/Brass Alloy Contact, 20- Crimp pin Male 24...20 AWG, 43031-0007, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点
