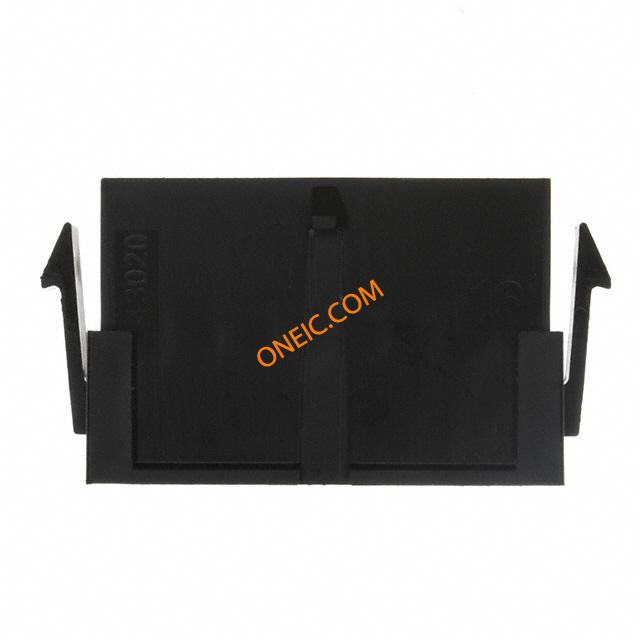

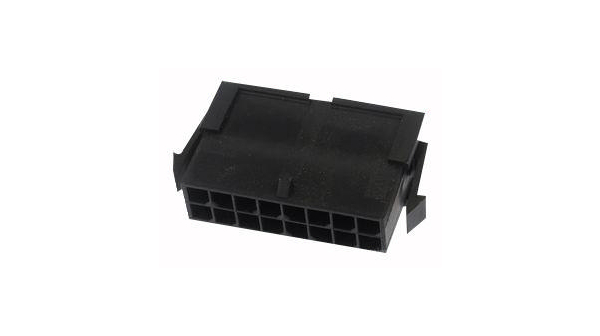

点击放大查看
43020-1600
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 16POS 3MM DUAL ROW 16way microfit 3mm 2row panel mount plug Headers & Wire Housings PLUG DUAL ROW 16P Conn Housing PL 16 POS 3mm ST Bag Conn Housing PL 16 POS 3mm Crimp ST Bag PLUG, PANEL MOUNT, 16WAY MICROFIT3.0PLUGDRPNLMNT16CKT Male contact housing dual row Pitch3 mm Poles 2 x 8 Micro-Fit, 43020-1600, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 16 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430201600 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 350 V ac/dc | 工作电压 | :250V |
| 接触电阻 | :10mohm | 介电强度 | :1500V/m |
| 最大额定电流 | 5 A | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 重量 | 0.000224 | 材料（通用） | :Polyester |
| 包装方式 | Bulk | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 2 |
| 壳体材料 | Polyester | 连接器颜色 | Black |
| 触点数 | 16 | 接触件端接 | Crimp |
| 位数 | 16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | :Plug | 系列 | 43020 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 电路数 | 16 Circuits | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | :Micro-Fit 3.0 Crimp Terminals | ||
环境参数
| 工作温度 | +105°C | ||
