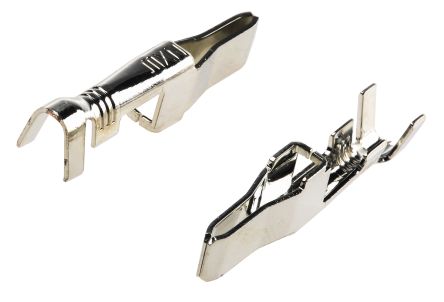

点击放大查看
42817-0041
| 制造商 | Molex, LLC |
| 描述 | CONN PINS 14-16AWG TIN CRIMP Headers & Wire Housings 14-16 AWG Reel of 2500 Contact PIN Crimp ST Cable Mount Reel CONTACT, PIN, 16-14 AWG, CRIMP Mini-Fit Sr. Terminal, Male, 14-16 AWG, Tin Plated Mini-FitSr.Terminal,Male,14-16AWG,TinPlated Contact; male; 14÷16AWG; Mini-Fit Sr; tinned; crimped; 50A Crimp pin, reel Male 16...14 AWG, 42817-0041, Molex Molex MINI-FIT SR. 系列 公 印刷电路板连接器触点, 压接, 镀锡触点 |
| 分类 |
商业参数
| 商标名 | Mini-Fit Sr. | 零件号别名 | 0428170041 |
| 产品类别 | Headers & Wire Housings | 工厂包装数量 | 2500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 50A | ||
机械参数
| 重量 | 0.00134 | 包装方式 | Reel |
| 导线线规 | 16-14 | 安装类型 | crimped |
| 连接器类型 | male | 接触镀层 | Tin |
| 触头材料 | Copper Alloy | 包装数量 | 1 |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | :Crimp |
| 线规或范围 - AWG | :16AWG | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1 | 类型 | Male |
| 系列 | 42817 | 产品子类型 | Contacts |
| 适配器系列 | Mini-Fit Sr. | 单元数量 | 2500 |
| 适用产品/相关产品 | :Mini-Fit Sr Housings | ||
